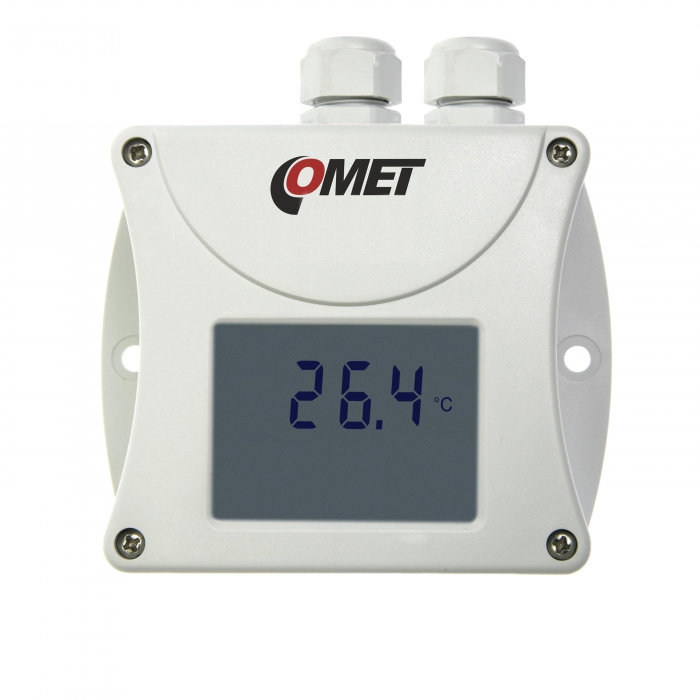

Temperature transmitter with RS232 interface
Temperature transmitter for Pt1000/3850ppm sensor is built in a durable watertight case. Degrees Celsius and Fahrenheit are user selectable. Large dual line LCD is an advantage. Display is possible to switch off.
-
codeT4311
-
Warranty3 years
- $228
Technical data
Measured value
Temperature
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-200 to +600 °C
Accuracy
±0.2°C (without temperature probe)
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x external temperature probe
Output
RS232
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU and Advantech ADAM compatible protocol
Power
9 to 30 Vdc
Protection class
IP65
Dimensions
88,5 x 117 x 39,5 mm
Weight
approx. 145 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
Optional accessories and download
Pt1000TG8/0, temperature probe
Temperature range: -80 to 200°C
code
SN104
Price
$54
In stock
40 pcs
Pt1000TG8/0, temperature probe, cable 2 m
Temperature range: -80 to 200°C
code
SN105
Price
$58
In stock
61 pcs
Pt1000TG8/0, temperature probe, cable 5 m
Temperature range: -80 to 200°C
code
SN108
Price
$74
In stock
50 pcs
Pt1000TG8/0, temperature probe, cable 10 m
Temperature range: -80 to 200°C
code
SN113
Price
$100
In stock
37 pcs
2061-250/0 Temperature probe
Temperature range: -30 to 250°C
code
SN147
Price
On request
In stock
on request
2061-250/0 2 m Temperature probe
Temperature range: -30 to 250°C
code
SN148
Price
On request
In stock
on request
2061-250/0 5 m Temperature probe
Temperature range: -30 to 250°C
code
SN151
Price
On request
In stock
3 pcs
2061-250/0 10 m Temperature probe
Temperature range: -30 to 250°C
code
SN156
Price
On request
In stock
on request
Pt1000TG7/0, temperature probe
Temperature range: -50 to 200°C
code
SN164
Price
$82
In stock
4 pcs
Pt1000TG7/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN165
Price
$88
In stock
4 pcs
Pt1000TG7/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN166
Price
$98
In stock
1 pcs
Pt1000TG7/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN167
Price
$120
In stock
57 pcs
2301-220/0, temperature probe, cable 1 m
Temperature range: -30 to 220°C
code
SN168
Price
$166
In stock
9 pcs
2021-150/0, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN169
Price
$268
In stock
3 pcs
PTS350A-2/0, temperature probe, cable 2 m
Temperature range: -30 to 130°C
code
SN170
Price
$86
In stock
6 pcs
2034-220/0, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN175
Price
$156
In stock
20 pcs
2061-200/0, temperature probe, cable 1 m
Temperature range: -50 to 200°C
code
SN178
Price
$192
In stock
7 pcs
2061-200/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN179
Price
$198
In stock
5 pcs
2061-200/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN180
Price
$214
In stock
5 pcs
2061-200/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN181
Price
$242
In stock
3 pcs
PTS350A-5/0, temperature probe, cable 5 m
Temperature range: -30 to 130°C
code
SN182
Price
$96
In stock
16 pcs
PTS350A-10/0, temperature probe, cable 10 m
Temperature range: -30 to 130°C
code
SN183
Price
$118
In stock
9 pcs
Pt1000TGL40/0, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN185
Price
$48
In stock
8 pcs
Pt1000TGL40/0, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN186
Price
$52
In stock
13 pcs
Pt1000TGL40/0, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN187
Price
$58
In stock
28 pcs
Pt1000TGL40/0, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN188
Price
$74
In stock
17 pcs
Pt1000TR160/0, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN199
Price
$40
In stock
10 pcs
Pt1000TR160/0, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN200
Price
$42
In stock
38 pcs
Pt1000TR160/0, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN201
Price
$48
In stock
90 pcs
Pt1000TR160/0, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN202
Price
$58
In stock
150 pcs
Pt1000TR160/0, temperature probe, cable 15 m
Temperature range: -30 to 80°C
code
SN203
Price
$80
In stock
19 pcs
Pt1000TR160/0, temperature probe, cable 20 m
Temperature range: -30 to 80°C
code
SN204
Price
$90
In stock
76 pcs
PTS380K/0 temperature sensor with a stainless steel connection head and connector
Temperature range: -30 to 100°C
code
SN205
Price
$130
In stock
1 pcs
2091-250/0, Stick-in probe, cable 1 m
Temperature range: -50 to 250°C
code
SN210
Price
$208
In stock
1 pcs
2091-250/0, Stick-in probe, cable 2 m
Temperature range: -50 to 250°C
code
SN211
Price
$224
In stock
on request
2091-250/0, Stick-in probe, cable 5 m
Temperature range: -50 to 250°C
code
SN212
Price
$272
In stock
6 pcs
2091-250/0, Stick-in probe, cable 10 m
Temperature range: -50 to 250°C
code
SN213
Price
$354
In stock
2 pcs
2071-030/0, special probe with CINCH connector
Temperature range: -30 to 80°C
code
SN214
Price
$326
In stock
4 pcs
Pt1000TG68/0, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN232
Price
$90
In stock
7 pcs
Pt1000TG68/0, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN233
Price
$106
In stock
5 pcs
Pt1000TG68/0, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN234
Price
$132
In stock
12 pcs
Pt1000TR125/0, temperature probe, cable 1 m
Temperature range: -190 to 150°C
code
SN239
Price
$186
In stock
8 pcs
Pt1000TR125/0, temperature probe, cable 2 m
Temperature range: -190 to 150°C
code
SN240
Price
$204
In stock
14 pcs
Pt1000TR125/0, temperature probe, cable 5 m
Temperature range: -190 to 150°C
code
SN241
Price
$262
In stock
32 pcs
Pt1000TR125/0, cryogenic temperature probe, cable 10 m
Temperature range: -190 to 150°C
code
SN242
Price
$362
In stock
18 pcs
Pt1000TR050S/0, temperature probe, cable 1 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 2 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/0, temperature probe, cable 5 m
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/0, without connector
Temperature range: -50 to 200°C
code
SN252
Price
$68
In stock
25 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 2 meters
Temperature range: -50 to 200°C
code
SN254
Price
$76
In stock
42 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 5 meters
Temperature range: -50 to 200°C
code
SN255
Price
$106
In stock
22 pcs
Ultra thin temperature probe Pt1000TG3/0, without connector, cable 10 meters
Temperature range: -50 to 200°C
code
SN256
Price
$154
In stock
5 pcs
Temperature probe Pt1000TR050S/0, without connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263
Price
$106
In stock
1 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265
Price
$124
In stock
on request
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266
Price
$150
In stock
1 pcs
Temperature probe Pt1000TG8Ex/0, without connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267
Price
$192
In stock
on request
Pt1000TR050M/0, temperature probe, cable 1 m
Temperature range: -50 to 400°C
code
SN270
Price
On request
In stock
6 pcs
Pt1000TR050M/0, temperature probe, cable 2 m
Temperature range: -50 to 400°C
code
SN271
Price
On request
In stock
on request
Pt1000TR050M/0, temperature probe, cable 5 m
Temperature range: -50 to 400°C
code
SN272
Price
On request
In stock
7 pcs
Pt1000TR050M/0, temperature probe, cable 10 m
Temperature range: -50 to 400°C
code
SN273
Price
On request
In stock
on request
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Price
$24
In stock
39 pcs
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Price
$24
In stock
on request
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Price
$24
In stock
on request
Accredited temperature calibration
code
SLU001
Price
$78
In stock
on request
Transducer USB/RS232 complete
code
MP006
Price
$70
In stock
8 pcs
COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
code
F8000
Price
$450
In stock
on request
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Price
$30
In stock
on request
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Price
$6
In stock
25 pcs
Transmitter version with watertight male connector
code
TxxxxL
Price
$30
In stock
on request
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
3D model T4311
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Transmitters
Related products
Temperature transmitter with RS232 output
code
T0310
Price
$280
In stock
10 pcs
Temperature transmitter with RS232 output
code
H4331
Price
$436
In stock
on request
