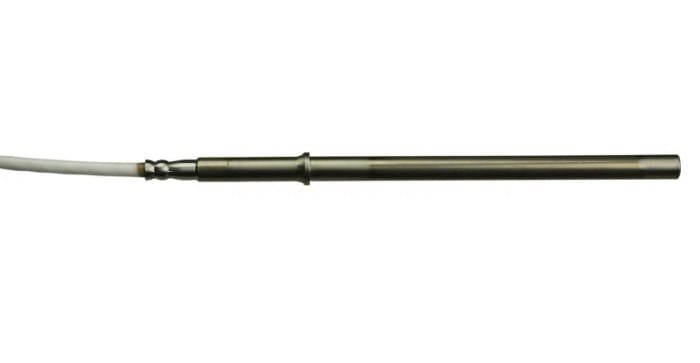

Pt1000TR050M/0, temperature probe, cable 1 m
Temperature probe with Pt1000 sensor.
The temperature sensors Pt1000TR050M are designed for measuring temperatures of gaseous and liquid substances.
The temperature range for application of the sensor is -50°C to +400 °C, the maximum temperature may be exceeded up to 450°C in a short time (relates to active measuring part of sensor which is determinated by spacer ring).
Around the lead in cable with Teflon insulation must not be temperature higher than 260 °C.
They meet the ingress protection IP64 according to the EN 60 529 standard. The sensors are suitable for temperature measurement in chemically non-aggressive environments, the using must be chosen with regard to temperature and chemical resistant housing and a cable.
-
codeSN270
- On request
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-50 to +400 °C, short-therm +450 °C, maximum temperature around the cable and above the clamping ring is +260 °C
Accuracy
± (0.15 + 0.002 t) at °C in range -50 to +250 °C
± (0.3 + 0.005 t) at °C in range over +250 °C
± (0.3 + 0.005 t) at °C in range over +250 °C
Accuracy class
A
Time response
t0.5 <5 s (in flowing water at > 0.2 m/s)
Type of sensing element
Pt1000
Temperature coefficient
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
Material of the case
stainless steel DIN 1.4301

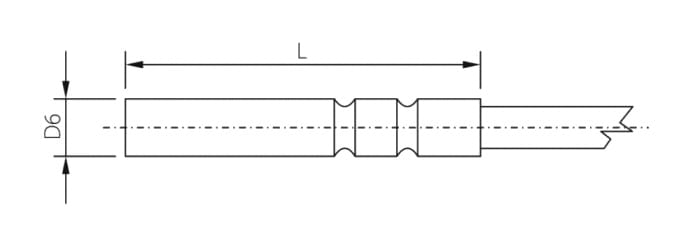

Dimensions of the case
length 50 mm; diameter 6 ± 0.1 mm;
spacer ring diameter 8 mm
spacer ring diameter 8 mm
Lead-in cable
shielded teflon 2 x 0,22 mm2
Length of lead-in cable
1 meter
Connector
without connector
IP protection
IP64
Warranty
30 months
