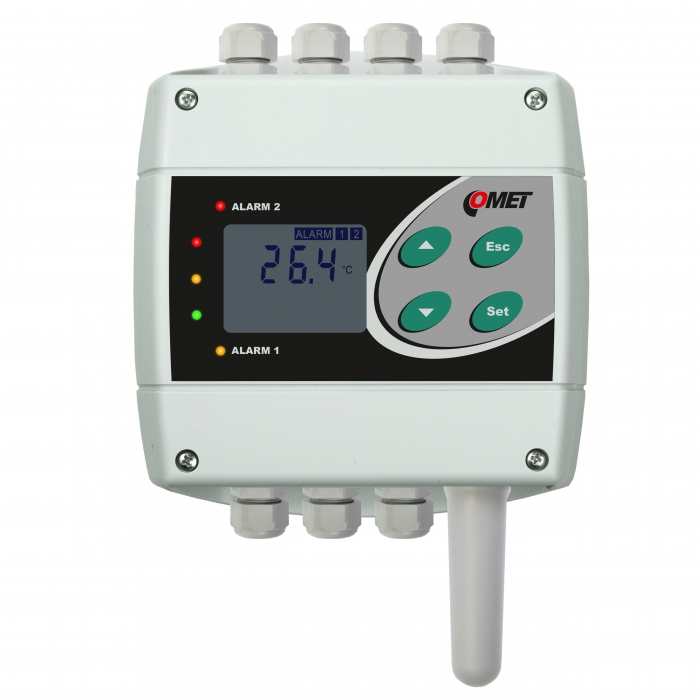

Temperature transmitter and regulator with RS485 output
Ambient temperature transmitter with two relay outputs. Outdoor, indoor use.
Built-in temperature sensor.
Temperature transmitter is equipped with three two-state inputs for detection of two-state signals - e.g. power presence, water, smoke, airflow, glass break detection, door contact.
-
codeH0430
-
Warranty3 years
- $600
Technical data
Measured value
Temperature
Two-state signal
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
RELAY OUTPUTS
Quantity
2
Maximal voltage
50 V
Maximal current
2 A
Maximal power
60 VA
BINARY INPUTS
Quantity
3
Signal for binary inputy
dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.
Inputs are not galvanically isolated.
Minimum pulse duration on binary input
500 ms
Voltage across open contact
< 3,3 V
Low voltage level
0 to +0,5 V
High voltage level
+3,0 to +30 V
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature and humidity sensor
Acoustic alarm
from built-in beeper - switchable
Output
RS485
Range of humidity sensor temperature compensation
all temperature range
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU, ARION, Advantech ADAM
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions
136 x 159 x 45 mm; length/diameter of external probe 88/18 mm
Weight
approx. 500 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
