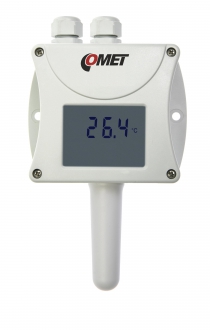

Temperature transmitter with RS485 output
Ambient temperature transmitter. Outdoor, indoor use.
Temperature transmitter is built in a durable watertight case. Degrees Celsius and Fahrenheit are user selectable. Large dual line LCD is an advantage. Display is possible to switch off. Computerized design ensures maximum long term stability and fail indication.
-
codeT0410
-
Warranty3 years
- $398
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature sensor
Output
RS485
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU, ARION, Advantech ADAM
Power
9-30 Vdc
Protection class
IP65
Dimensions
88,5 x 148 x 39,5 mm; stem length 53 mm
Weight
approx. 140 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Price
$24
In stock
43 pcs
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Price
$24
In stock
on request
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Price
$24
In stock
on request
Accredited temperature calibration
code
SLU001
Price
$78
In stock
on request
COMETEO Professional Multi-Plate Radiation Shield for Weather Sensors
code
F8000
Price
$450
In stock
on request
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Price
$30
In stock
on request
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Price
$6
In stock
25 pcs
Transmitter version with watertight male connector
code
TxxxxL
Price
$30
In stock
on request
code
BM512
code
PPO001
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
3D model T0410
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Transmitters
