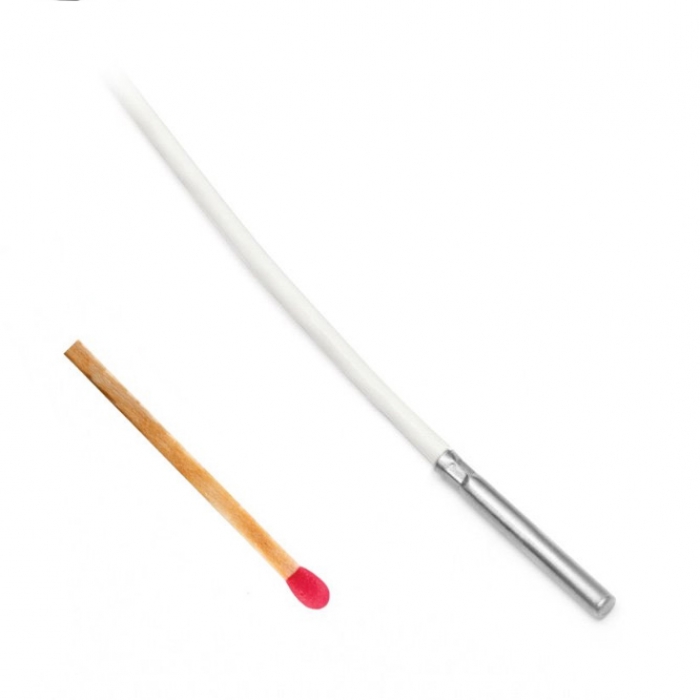

Ultra thin temperature probe Pt1000TG3/M, MiniDin connector
Probes are designed for contact measurement of the temperature of gaseous and liquid or solid substances.
Ultra thin 3 mm diameter of the case ensures fast response to changes in temperature. Used type of lead-in cable has teflon insulation with shielding. The sensors are designed for universal use.
The method of use must be chosen with regard to the temperature and chemical resistance of the case and lead-in cable. The sensors are also designed for use in a chemically non-aggressive environment.
-
codeSN252M
- $88
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-50 to +200 °C
Accuracy
± (0.15 + 0.002 t) at °C
Accuracy class
A
Time response
t0.5 to 3 s
t0.9 to 9 s
t0.9 to 9 s
Type of sensing element
Pt1000
Temperature coefficient
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
Material of the case
stainless steel DIN 1.4301

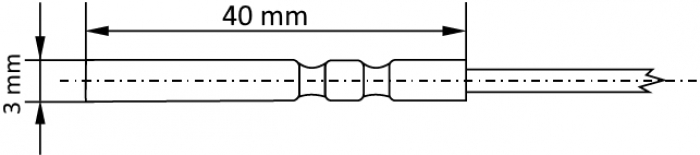

Dimensions of the case
length 40 mm;
diameter 3 mm
diameter 3 mm
Lead-in cable
teflon shielded (white color)
Length of lead-in cable
1 meter
Connector
MiniDin
IP protection
IP67
Warranty
30 months
