Humidity-temperature probe for p-line Web Sensor

Discontinued Replacement

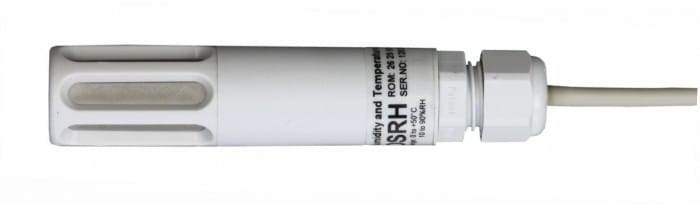

Digital humidity-temperature probe for P8xxx Web Sensor with range 0 to 50°C. With CINCH connector.

code

DSRH01

On request

Buy

Add to quote

Technical data

Measured value

Temperature

Relative humidity

TEMPERATURE SENSOR

Measuring range 0 to +50 °C

Accuracy ± 2 °C

RELATIVE HUMIDITY SENSOR

Measuring range 10 to 90 %RV

Accuracy 3.5 %RV in range 10 to 90 %RV at 25 °C

GENERAL TECHNICAL DATA

Filtrační schopnost krytky senzoru 0.025mm - filter with stainless steel mesh

Dimensions of the case length 88mm;
diameter 18 mm

Length of lead-in cable 1 meter

Connector CINCH

IP protection IP40

Warranty 3 years
