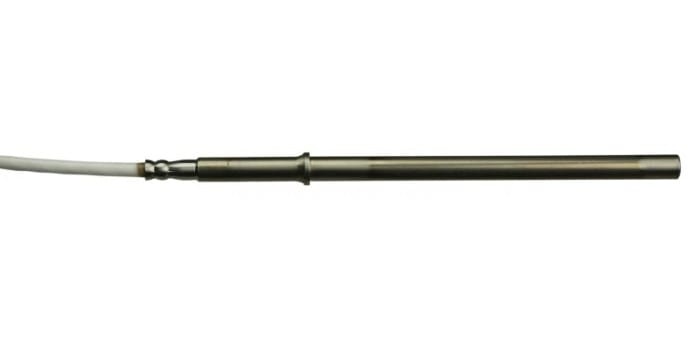

Temperature probe Pt1000TR050M/M, MiniDin connector, cable 10 meters
Temperature probe with Pt1000 sensor.
The temperature sensors Pt1000TR050M are designed for measuring temperatures of gaseous and liquid substances.

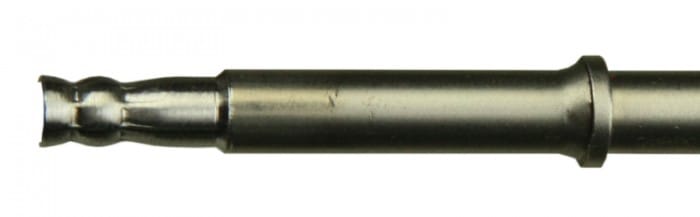

The temperature range for application of the sensor is -50°C to +400 °C, the maximum temperature may be exceeded up to 450°C in a short time (relates to active measuring part of sensor which is determinated by spacer ring).
Around the lead in cable with Teflon insulation must not be temperature higher than 260 °C.
They meet the ingress protection IP64 according to the EN 60 529 standard. The sensors are suitable for temperature measurement in chemically non-aggressive environments, the using must be chosen with regard to temperature and chemical resistant housing and a cable.
-
codeSN273M
- On request
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-50 to +400 °C, short-therm +450 °C, maximum temperature around the cable and above the clamping ring is +260 °C
Accuracy
± (0.15 + 0.002 t) at °C in range -50 to +250 °C
± (0.3 + 0.005 t) at °C in range over +250 °C
± (0.3 + 0.005 t) at °C in range over +250 °C
Accuracy class
A
Time response
t0.5 <5 s (in flowing water at > 0.2 m/s)
Type of sensing element
Pt1000
Temperature coefficient
3850 ppm / °C
GENERAL TECHNICAL DATA
Wire connection
2-wire connection
Material of the case
stainless steel DIN 1.4301
Dimensions of the case
length 50 mm; diameter 6 ± 0.1 mm;
spacer ring diameter 8 mm
spacer ring diameter 8 mm
Lead-in cable
shielded teflon 2 x 0,22 mm2
Length of lead-in cable
10 meters
Connector
MiniDin
IP protection
IP64
Warranty
30 months
