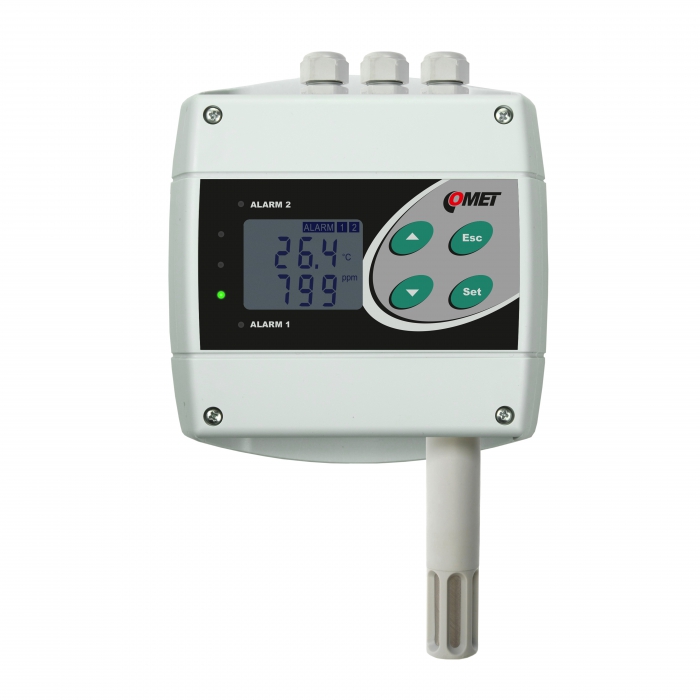

Temperature, humidity, CO2 transmitter with two relay outputs
Temperature, humidity, CO2 level sensor with two output relays.
-
codeH6020
-
Warranty3 years
- $866
Technical data
Measured value
Temperature
Relative humidity
CO2
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
CO2 SENSOR
Measuring range
0 to 2000 ppm
Accuracy
±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution
1 ppm
RELAY OUTPUTS
Quantity
2
Maximal voltage
50 V
Maximal current
2 A
Maximal power
60 VA
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
internal temperature, humidity and CO2 sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Acoustic alarm
from built-in beeper - switchable
Power
9-30 Vdc
Protection class
IP30 electronics; IP40 sensors
Dimensions
136 x 213 x 45 mm; stem length 75mm
Weight
approx. 360 g
Warranty
3 years
