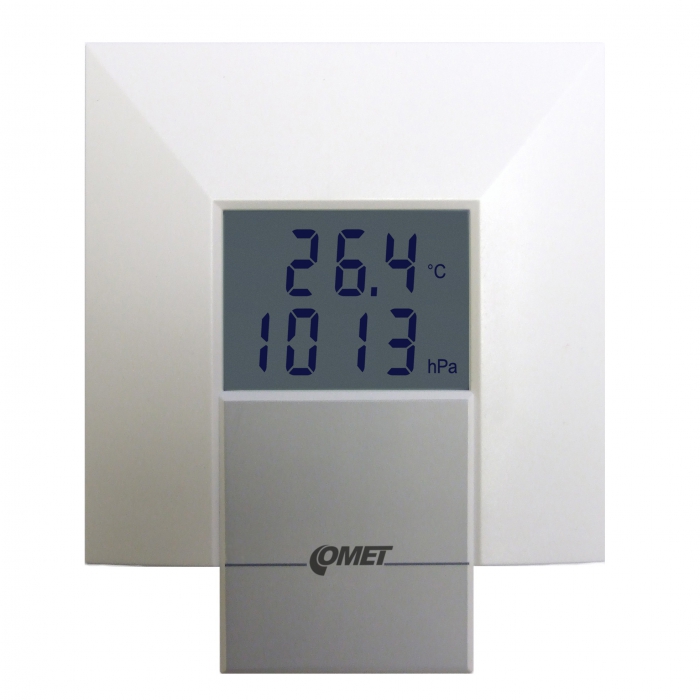

Interior temperature, humidity, bar. pressure transmitter - RS232 output

Ambient temperature, humidity, atmospheric pressure transmitter. Indoor use.

For exacting interiors in building energy management and HVAC systems. Are designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.

code

T7318
Warranty

3 years

$538

Buy

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -10 to +50 °C

Accuracy ±0.5 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 5 to 95 % RH

Accuracy ± 2,5 % RH in the range 5 to 60 % RH

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.6°C at ambient temperature T<25°C and RH>30%

Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa

Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa

Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -10 to +50 °C

Channels internal sensor of temperature, humidity sensor and atmospheric pressure

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output RS232

Range of humidity sensor temperature compensation all temperature range

Available temperature units degrees Celsius, degrees Fahrenheit

Available pressure units hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2

Communication protocol ModBus RTU and Advantech ADAM compatible protocol

Power 9 to 30 Vdc

Protection class IP20

Dimensions 88 x 106 x 33 mm

Weight approx. 150 g

Warranty 3 years

Features

Applications:

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Healtcare and laboratories - -200 °C.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO₂, Two-state events
● industrial or interior design with protection up to IP65

● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
