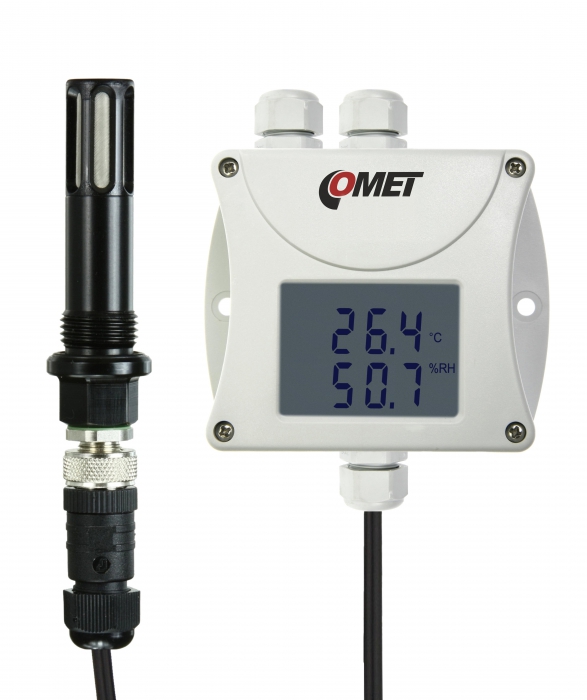

Compressed air RH+T transmitter with RS485 output

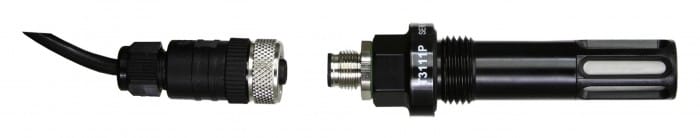

Humidity, temperature transmitter. T+RH probe from hard anodized duralumin for compressed air up to 25 bars on the cable. Outdoor, indoor use.
Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
The device is supplied with T+RH probe with 1 meter cable.
-
codeT3419P
-
Warranty3 years
- $782
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +105 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C
±2.0°C for dew point temperature 0°C at ambient temperature +25°C
±3.0°C for dew point temperature -10°C at ambient temperature +25°C
±6.0°C for dew point temperature -20°C at ambient temperature +25°C
±2.0°C for dew point temperature 0°C at ambient temperature +25°C
±3.0°C for dew point temperature -10°C at ambient temperature +25°C
±6.0°C for dew point temperature -20°C at ambient temperature +25°C
Resolution
0.1 °C
MEASURING THE MOISTURE OF COMPRESSED AIR
Measuring range
up to 25 bars
Air flow velocity
up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
1x connectable temperature+humidity probe
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
RS485
Range of humidity sensor temperature compensation
all temperature range
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU, ARION, Advantech ADAM
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions

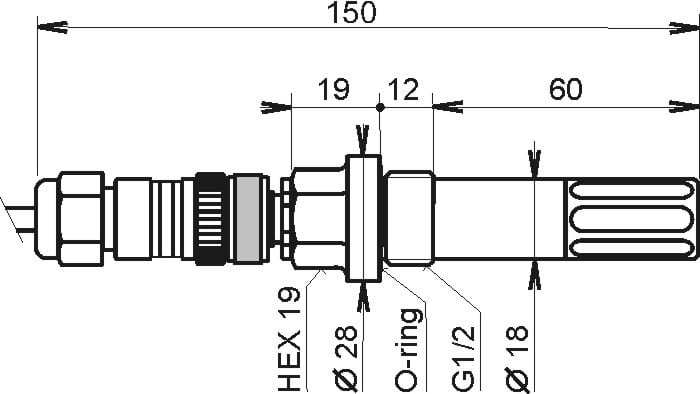

88,5 x 114 x 39,5 mm; length/diameter of external probe 88/18 mm
External probe cable length
1 meter
Weight
approx. 210 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
