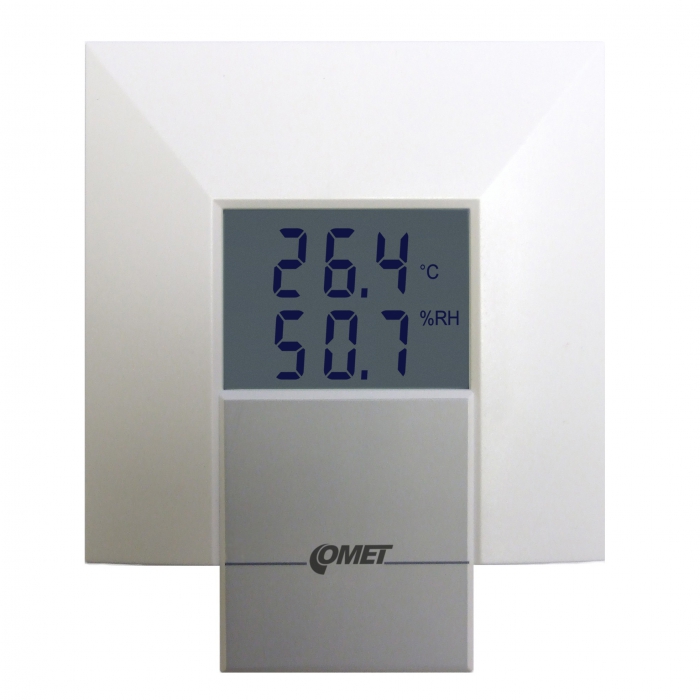

Interior temperature, humidity transmitter with RS232 output
Ambient humidity, temperature transmitter. Indoor use.
For exacting interiors in building energy management and HVAC systems. Are designed for easy installation on ordinary KU68 wiring boxes for household switches and sockets.
-
codeT3318
-
Warranty3 years
- $342
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-10 to +50 °C
Accuracy
±0.5 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
5 to 95 % RH
Accuracy
± 2,5 % RH in the range 5 to 60 % RH
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.6°C at ambient temperature T<25°C and RH>30%
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-10 to +50 °C
Channels
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
RS232
Range of humidity sensor temperature compensation
all temperature range
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU and Advantech ADAM compatible protocol
Power
9 to 30 Vdc
Protection class
IP20
Dimensions
88 x 106 x 33 mm
Weight
approx. 150 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Price
$24
In stock
43 pcs
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Price
$24
In stock
on request
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Price
$24
In stock
on request
Accredited temperature and relative humidity calibration
code
SLU003
Price
$112
In stock
on request
code
BM512
code
PPO001
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Declaration of Conformity
Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Interior Sensors
