Compressed air RH+T+Tdp sensor with 2 meters cable and 0-10V output

Compressed air RH+T+Tdp sensor with 2 meters cable and 0-10V output
Compressed air RH+T+Tdp sensor with 2 meters cable and 0-10V output
Compressed air RH+T+Tdp sensor with 2 meters cable and 0-10V output
Compressed air RH+T+Tdp sensor with 2 meters cable and 0-10V output
Compressed air RH+T+Tdp sensor with 2 meters cable and 0-10V output
Compressed air RH+T+Tdp sensor with 2 meters cable and 0-10V output

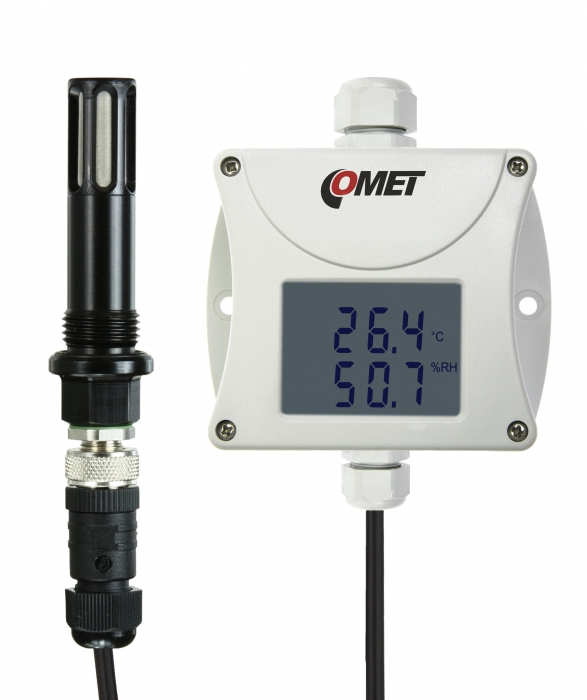

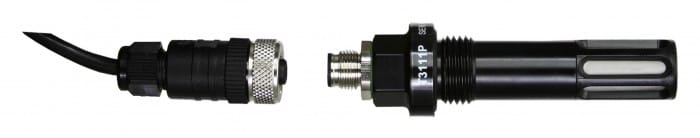

Humidity, temperature transmitter. T+RH probe from hard anodized duralumin for compressed air up to 25 bars. Outdoor, indoor use.

Humidity, temperature probe on a cable. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

The device is supplied with T+RH probe with 2 meters cable.

NEW - AC Power -  now also powered from 24 Vac !



  • code
    T0211P-2
  • Warranty
    3 years
  • $754
Buy
Add to quote

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +105 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5°C for dew point temperature +10°C and higher at ambient temperature +25°C
±2.0°C for dew point temperature 0°C at ambient temperature +25°C
±3.0°C for dew point temperature -10°C at ambient temperature +25°C
±6.0°C for dew point temperature -20°C at ambient temperature +25°C
Resolution 0.1 °C

MEASURING THE MOISTURE OF COMPRESSED AIR

Measuring range up to 25 bars
Air flow velocity up to 25 m/s at a pressure of 1 bar (1m/s at a pressure of 25 bar)

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C
Channels 1x connectable temperature+humidity probe
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output 0 - 10 V
Range of humidity sensor temperature compensation all temperature range
Configuration of output user adjustable from PC; measured range + value
Power 15-30 Vdc; 24 Vac
Protection class IP65 electronics; IP40 sensors

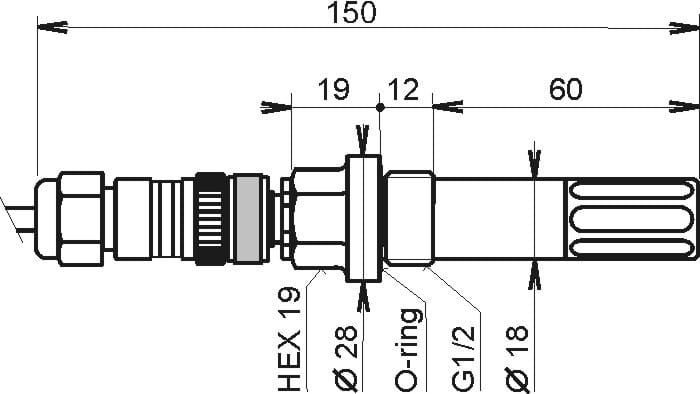

Dimensions 88,5 x 114 x 39,5 mm; length/diameter of external probe 88/18 mm
External probe cable length 2 meters
Weight approx. 210 g
Warranty 3 years

Optional accessories and download

Accredited temperature calibration

Accredited temperature calibration

code SLU001
Price $78
In stock on request

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003
Price $64
In stock 39 pcs

Wall holder for external probes DIGIL

Wall holder for external probes DIGIL

code SP009
Price $14
In stock 3 pcs

plastic sensor protection with stainless filter (black)

plastic sensor protection with stainless filter (black)

code F5200B
Price $24
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price $76
In stock on request

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Price $142
In stock 18 pcs
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Price $142
In stock 16 pcs
Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Price $30
In stock on request
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Price $90
In stock 10 pcs
Flow chamber for compressed air measurement up to 25 bars

Flow chamber for compressed air measurement up to 25 bars

code SH-PP
Price $160
In stock on request
Tool for easy connection to WAGO terminals 236 for analog output transmitters

Tool for easy connection to WAGO terminals 236 for analog output transmitters

code SP005
Price $6
In stock 44 pcs
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL
Price $30
In stock on request

code BM512

code PPO001
