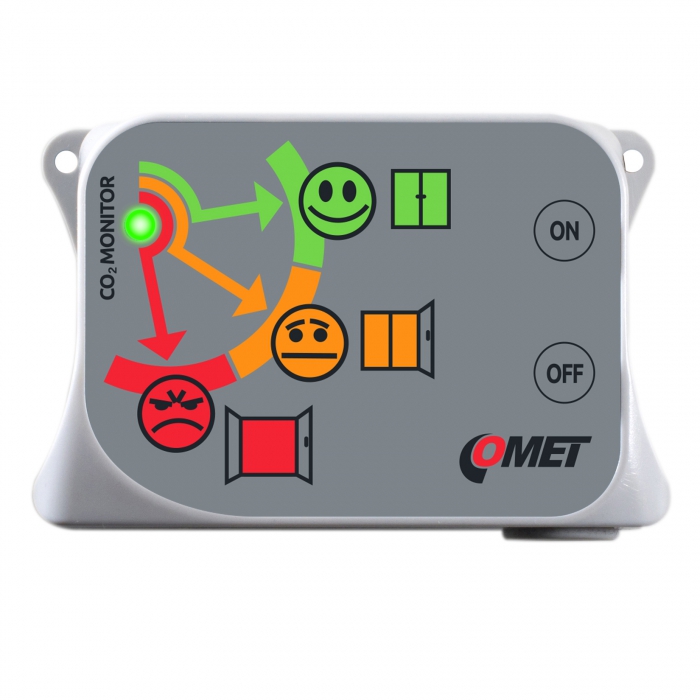

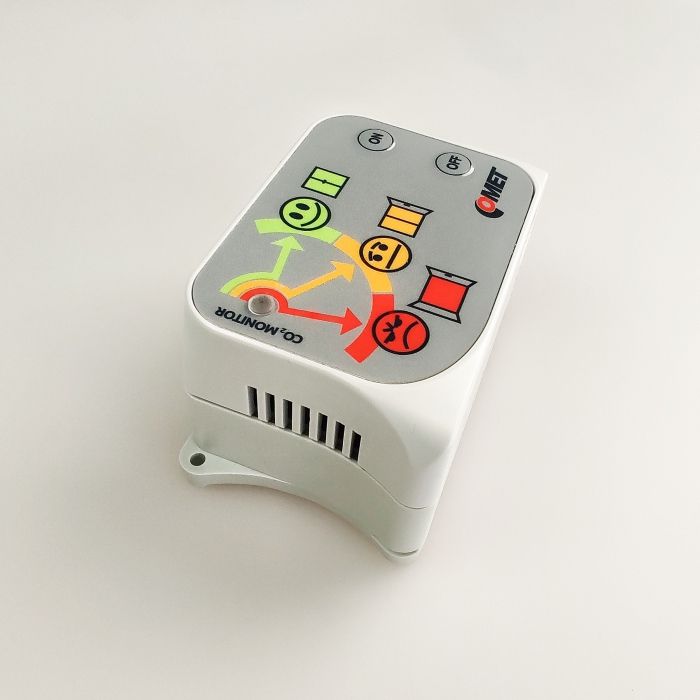

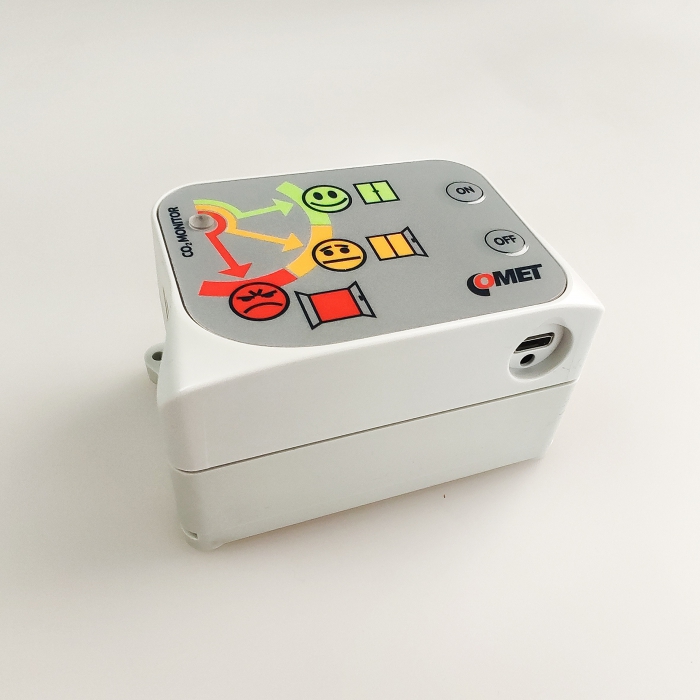

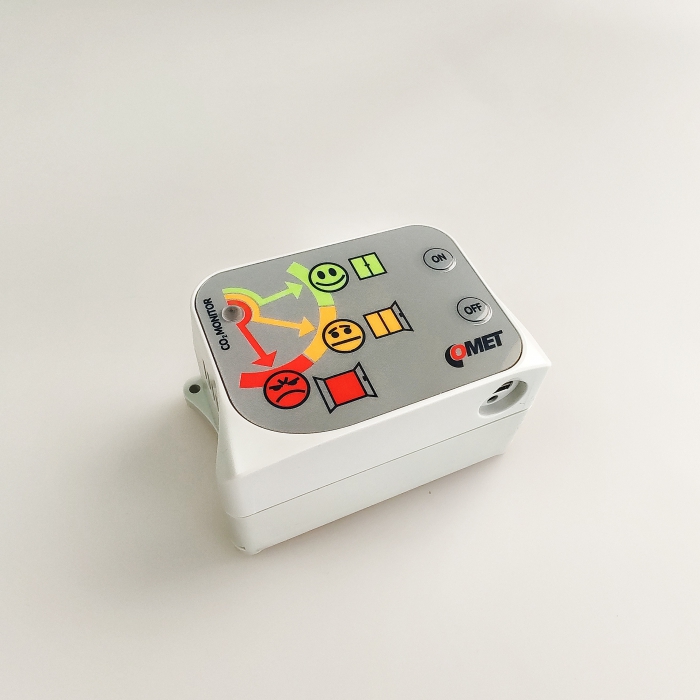

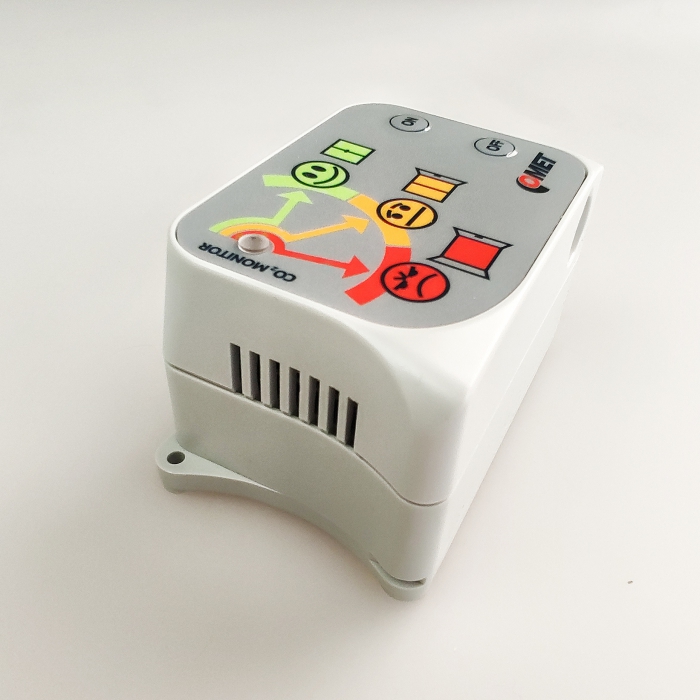

CO2 monitor with built-in carbon dioxide sensor
CO2 monitor - carbon dioxide level detector. Although carbon dioxide is invisible and odourless, increased CO2 content in the room leads to fatigue and decreased mental concentration.
Battery powered device U8415 with external power (optional accessories) is designed to indication of CO2 concentration inside buildings (schools, conference halls, hospitals, offices, cinemas, theaters etc.).
The level of CO2 concentration is indicated by the device using three colors. Changes in the indicated states are also signaled acoustically - by a beep. The signaling method can be set by the user using the COMET Vision software.
The device U8415 is equipped with a maintenance-free and long-term stable NDIR sensor with dual wavelength and multi-point calibration.
Green LED flashes - CO2 concentration 0 to 1000 ppm
Yellow LED flashes - CO2 concentration 1001 to 1400 ppm
Red LED flashes - CO2 concentration 1401 ppm and more
Recorder includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeU8415
-
Warranty3 years
- $482
Technical data
Measured value
CO2
CO2 SENSOR
Measuring range
0 to 5000 ppm
Accuracy
±(50 ppm +3% from reading)
Measurement interval
15 s with external power supply, 2 min on battery power
GENERAL TECHNICAL DATA
Operating temperature
-20 to +60 °C
Channels
internal CO2 sensor
Power
Li-Ion battery A8200, 3.6V/5200mAh
Protection class
IP30
Recommended calibration interval
5 years
Dimensions
61 x 93 x 53 mm
Weight
approx. 250 g
Warranty
3 years
Optional accessories and download
AC/DC adapter 230Vac to 5Vdc/2.1 A, EU
code
A1879eu
Price
$24
In stock
38 pcs
AC/DC adapter 230Vac to 5Vdc/2.1 A, UK
code
A1879uk
Price
$24
In stock
on request
AC/DC adapter 230Vac to 5Vdc/2.1 A, US
code
A1879us
Price
$24
In stock
on request
Accupack A8205 for dataloggers "U"
code
A8205
Price
$106
In stock
on request
Accredited CO2 calibration
code
SLU015
Price
On request
In stock
on request
USB-C cable, 1 meter
code
MP053
Price
$24
In stock
on request
wall holder for datalogger - kopie
code
LP100
Price
$42
In stock
12 pcs
Holder for mounting the GSM or CO2 Datalogger on magnetic surfaces
code
LP103
Price
$20
In stock
10 pcs
COMET Vision - Software for Dataloggers and Multiloggers
code
CV
Price
On request
In stock
yes
Adapter for CO2 adjustment and calibration of dataloggers COMET
code
LP104
Price
$288
In stock
2 pcs
code
BM512
code
PPO001
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Manual for Calibration (accuracy verification) and Adjustment for Dataloggers Uxxxx(M)
Catalogs
CATALOG - Dataloggers
CATALOG - CO2
