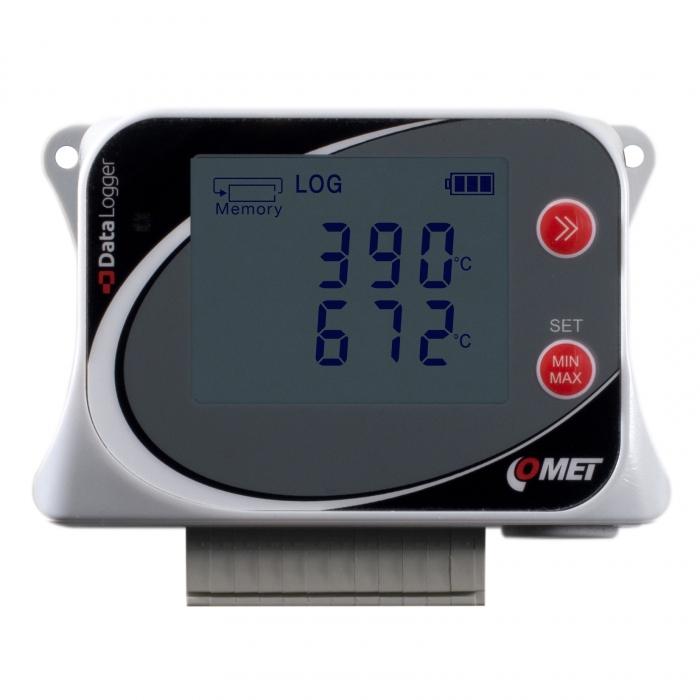

Temperature data logger for 3x thermocouples, 1x external Pt1000 probe and 1x internal sensor

Datalogger is designed to record temperature from three thermocouples, one Pt1000 probe and one internal temperature sensor.
The recording is performed in a non-volatile electronic memory. The data can be transferred to a PC via USB-C.
In case of exceeded set limits alarms are indicated by LED, LCD and acoustically by built-in beeper.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

code

U0246
Warranty

3 years

$468

Buy

Add to quote

Technical data

Measured value

Temperature

TEMPERATURE SENSOR - internal probe

Measuring range -30 to +70 °C

"Accuracy ±0.4°C;"

Resolution 0.1 °C

Response time of temperature measurement (temperature step 20°C, air flow approximately 1m/s) t63 < 6 minutes; t90 < 15 minutes

TEMPERATURE SENSOR - external probe Pt1000

Measuring range -200 to +260 °C

"Accuracy ±0.2°C; ±0,2 % of the measurement value in a range of +100 to +260 °C"

Resolution 0.1 °C

"Response time t90 of temperature measurement (temperature step 20°C, air flow approximately 1m/s) according to the connected probe"

TEMPERATURE SENSOR - THERMOCOUPLE TYPE B, J, K, N, S, T

Measuring range type K and N -200 to +1300 °C

Measuring range type J -200 to +750 °C

Measuring range type S 0 to 1700 °C

Measuring range type B 250 to 1800 °C, cold junction is not compensated

Measuring range type T -200 to +400 °C

Measuring range of DC voltage -70 to +70 mV

Accuracy for types J, K, N, T ± (|0,3 % of the measurement value|+1,5 °C)

Accuracy for types B and S ± (|0,5 % of the measurement value| +5 °C)

Accuracy for DC voltage ± 70 µV

Resolution 0,1 °C

Response time according to the connected thermocouple

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C

Channels 3x thermocouple, 1x external Pt1000

Memory 500,000 values in noncyclic logging mode; 350,000 values in cyclic record mode

"Recording interva adjustable from 1 s to 24 h"

"Interval for measuring and evaluating alarms adjustable 1 s, 10 s, 1 min"

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

"Real time clock year, leap year, month, day, hour, minute, second"

Power Lithium battery 3.6 V, size AA

Protection class IP20

Dimensions 61 x 93 x 53 mm

Weight (including batteries) cca 130 g

Warranty 3 years

Optional accessories and download

CP500 thermocouple K surface probe

Temperature range: -65 to 500°C

code CP500

Price $144

In stock 7 pcs

CZ550 thermocouple K surface probe

Temperature range: -65 to 550°C

code CZ550

Price $156

In stock 1 pcs

CZ900 thermocouple K needle probe

Temperature range: -65 to 1000°C

code CZ900

Price $154

In stock 1 pcs
