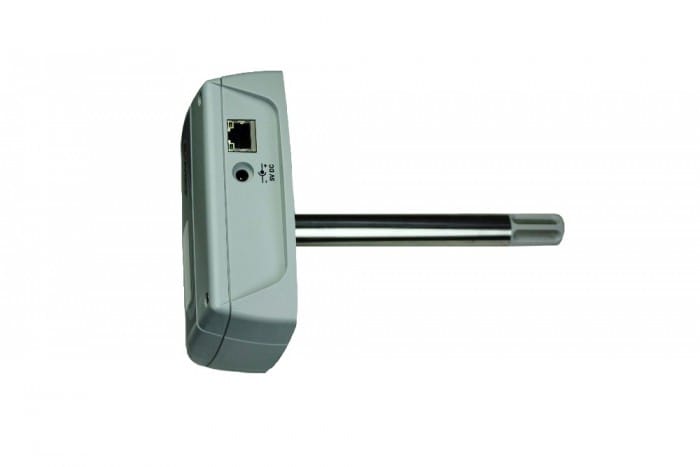

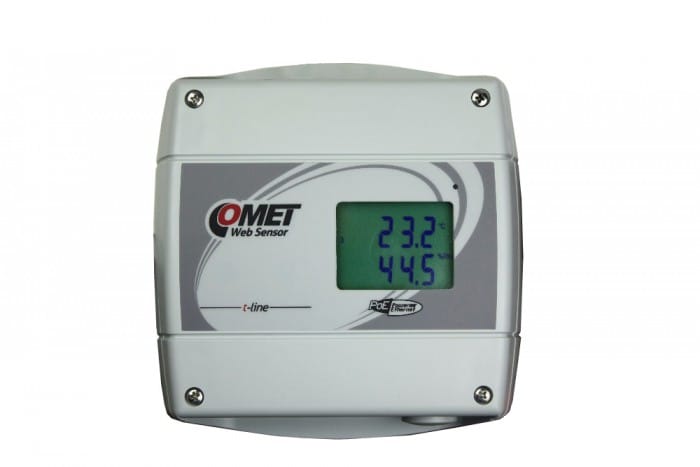

Web Sensor with PoE, duct mount - remote thermometer hygrometer barometer with Ethernet interface

Ambient temperature, relative humidity, atmospheric pressure t-line Web sensor with Power over Ethernet feature. Remote alarm. Duct mount.

PoE Web Sensor with built-in temperature, relative humidity and atmospheric pressure sensors.

High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Dual line LCD is an advantage. Power over Ethernet feature according IEEE 802.3af is supported. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.

Processing and analysis of measured data:

code

T7613D
Warranty

3 years

$952

Buy

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

Atmospheric pressure

TEMPERATURE SENSOR

Measuring range -30 to +105 °C

Accuracy ±0.6 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±2.5 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

ATMOSPHERIC PRESSURE SENSOR SENSOR

Measuring range 600 to 1100 hPa

Accuracy ±1.3 hPa at 23 °C from 800 to 1100 hPa

Resolution 0.1 hPa

GENERAL TECHNICAL DATA

Operating temperature -20 to +60 °C

Channels internal sensor of temperature, humidity sensor and atmospheric pressure

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Output Ethernet

Range of humidity sensor temperature compensation all temperature range

Measuring interval 2 s

Available temperature units degrees Celsius, degrees Fahrenheit

Available pressure units hPa, kPa, mbar, mmHg, inHg, inH2O, PSI, oz/in2

Communication protocol WWW, ModbusTCP, SNMPv1, SOAP, XML

Alarm protocols E-mail, SNMP Trap, Syslog

Power Power over Ethernet according to IEEE 802.3af or 5Vdc

Protection class IP30

Dimensions 136 x 201 x 45 mm; stem length 150 mm

Weight approx. 320 g

Warranty 3 years

Features

Applications:

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.

Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO₂, Two-state events

● communication protocols SNMP, Modbus TCP, SOAP, XML

● webserver to display current and recorded values

● alarm indication via email

● selected models with PoE

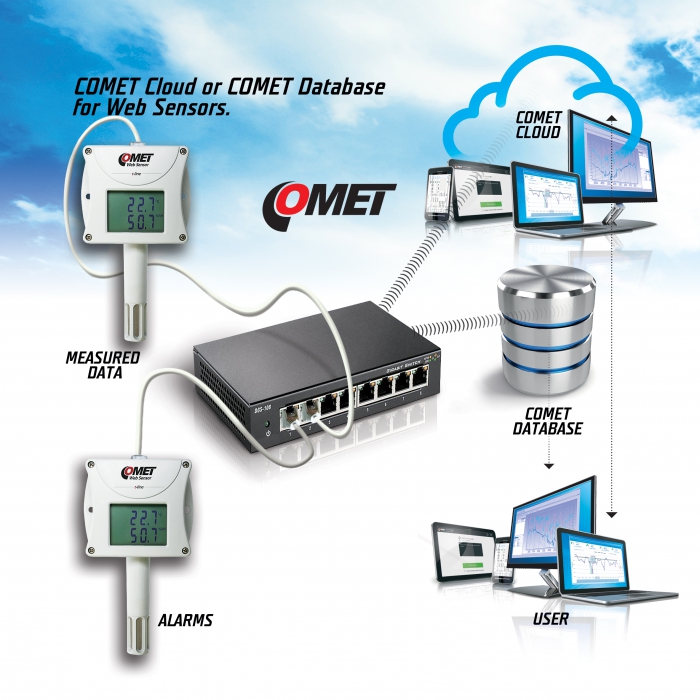

● data analysis in COMET Database software
