WebSensor with PoE - remote CO2 concentration with Ethernet interface
CO2 - carbon dioxide t-line Web sensor. Remote alarm.
Web Sensor with built-in concentration CO2 sensor with PoE function.
A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range; this is a must for process control and outdoor applications. The dual wavelength NDIR CO2 sensing procedure compensates automatically for ageing effects. The CO2 module is highly resistant to pollution and offers maintenance free operation and outstanding long term stability.

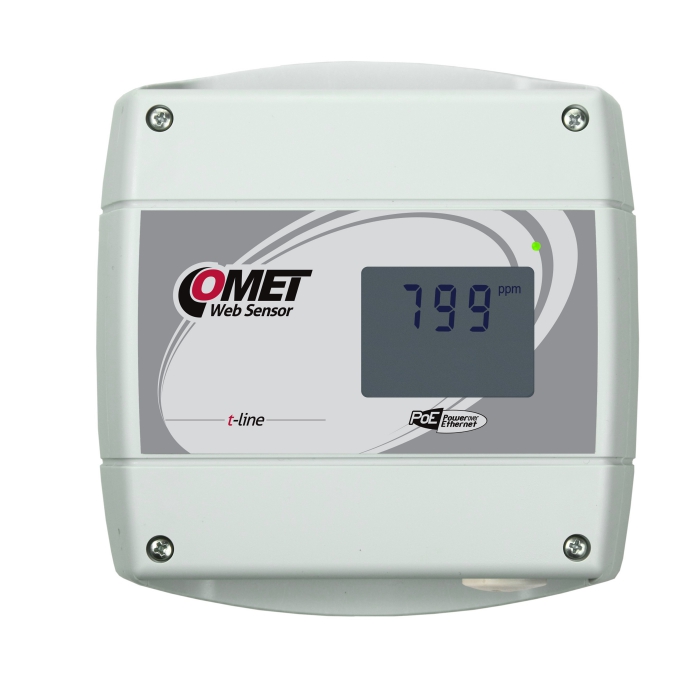

The CO2 concentration is shown on the display or signaled by a color LED.

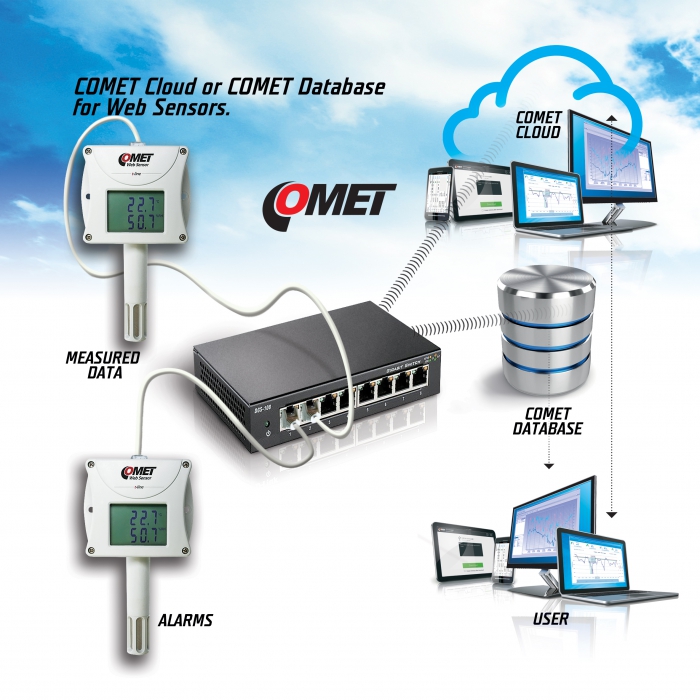

Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
Possibility to extend the measuring range for an additional charge:
- Measuring range: 0 to 10 000 ppm
- Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa
-
codeT5640
-
Warranty3 years
- $754
Technical data
Measured value
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.
Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.
Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Features description:
* the features may vary depending on the device type
Optional accessories and download
AC/DC adapter 120Vac to 5Vdc/2.1A, EU
AC/DC adapter 120Vac to 5Vdc/2.1A, UK
AC/DC adapter 120Vac to 5Vdc/2.1A, US
Accredited CO2 calibration
Extra charge for increasing the range of the internal CO2 sensor
KIT-GSM with modem
Holder for mounting the COMET Transmitter on magnetic surfaces
COMET Database
COMET Cloud
Database Viewer for Comet Database
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
How to add WebSensor to COMET Cloud
MIB
Software development kit (SDK)
Catalogs
CATALOG - CO2
CATALOG - WebSensor with Ethernet output
Catalogue Sheets - COMET Premium WebSensors
