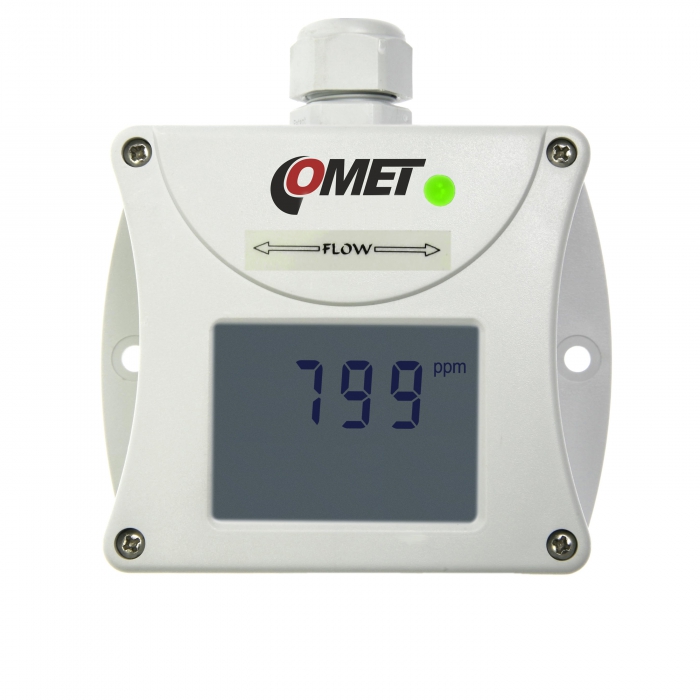

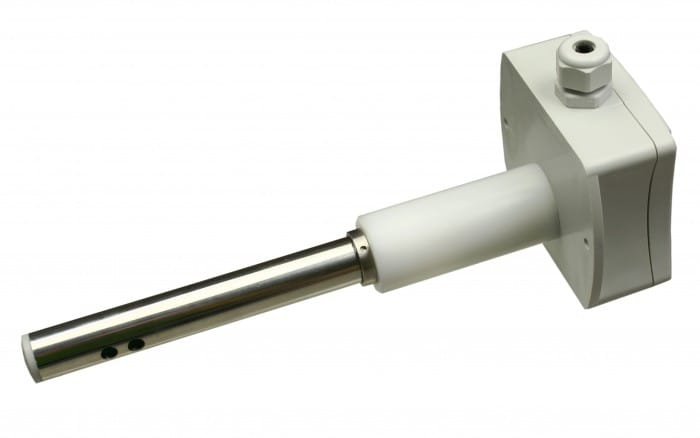

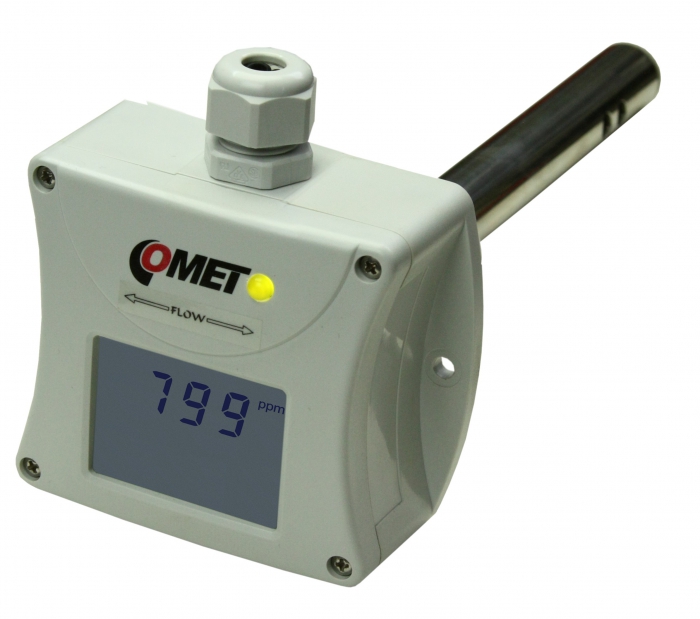

CO2 concentration transmitter with 0-10 V output, duct mount

Duct mount CO2 concentration transmitter with 0-10 V output.

carbon dioxide

Green LED shines - CO2 concentration 0 to 1000 ppm

Yellow LED shines - CO2 concentration 1001 to 1200 ppm

Red LED shines - CO2 concentration 1201 ppm and more



Possibility to extend the measuring range for an additional charge:

  • Measuring range:  0 to 10 000 ppm
  • Accuracy: 100 ppm + 5% of the measured value at 25 °C and 1013 hPa

  • code
    T5245
  • Warranty
    3 years
  • $606

Technical data

Measured value

CO2

CO2 SENSOR

Measuring range 0 to 2000 ppm
Accuracy ±(50ppm +2% from reading) at 25°C and 1013hPa
Resolution 1 ppm

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal CO2 sensor
Output 0 - 10 V
Configuration of output user adjustable from PC; measured range + value
Power 15-30 Vdc
Protection class IP65 electronics; IP20 sesors
Dimensions 89 x 73 x 240 mm; stem length 130 mm
Weight approx. 260 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of sterile environments and storage areas at temperatures up to -200 °C. COMET sensors can serve well even in these demanding and wide range of applications focusing on monitoring temperature, CO2 and other critical parameters in the context of GLP and GMP regulations.

Aplikace - Průmysl

Industry and manufacturing - such as the chemical, oil, paper and steel industries - is distinguished by its capital demands. A competition across the market is still growing and creates additional pressure on the prices. Our company has a good understanding of this situation and thus provides very reliable and precise products for a very competitive price.

Aplikace - Sklady

Food industry - wherever there is a need to monitor critical variables in relation to HACCP regulations, COMET sensors and transducers may be used. Along with other COMET products such monitoring systems MS6 and MS55D, it is possible to create a comprehensive system for collecting, recording, analyzing and alerting.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Aplikace - Sklady

Potentially explosive environments - Selected devices comply with the requirements of the ATEX directive for use in potentially explosive environments (zone 2).

Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● ATEX design for potentially explosive atmospheres (zone 2) on selected models
● relays output 250Vac / 8A or 50 V on selected models

3 years warranty Traceable calibration certificate
Temperature Relative humidity CO2 Barometric pressure Dew point LCD 4-20mA output 0-10V output ATEX


Optional accessories and download

Accredited CO2 calibration

Accredited CO2 calibration

code SLU015
Price On request
In stock on request

Extra charge for increasing the range of the internal CO2 sensor

Extra charge for increasing the range of the internal CO2 sensor

code SLU113
Price $94
In stock on request

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003
Price $64
In stock 36 pcs

Female connector ELKA 4012PG7 for TxxxxL

Female connector ELKA 4012PG7 for TxxxxL

code K1427
Price $30
In stock on request
PP4 Flat circular flange

PP4 Flat circular flange

code PP4
Price $14
In stock 55 pcs
PP90 Right-angled stainless steel flange

PP90 Right-angled stainless steel flange

code PP90
Price $14
In stock 32 pcs
plastic gland for direct mounting of the humidity probe

plastic gland for direct mounting of the humidity probe

code SP004
Price $6
In stock 31 pcs
Tool for easy connection to WAGO terminals 236 for analog output transmitters

Tool for easy connection to WAGO terminals 236 for analog output transmitters

code SP005
Price $6
In stock 44 pcs
Transmitter version with watertight male connector

Transmitter version with watertight male connector

code TxxxxL
Price $30
In stock on request

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon 3D model T5245
936.86 KB
download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
1.68 MB
download-icon Quick Start Manual
555.32 KB
download-icon Declaration of Conformity
100.81 KB

Catalogs

download-icon CATALOG - CO2
5.30 MB
download-icon CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
1.86 MB
download-icon Catalogue Sheets - COMET Transmitters
1.17 MB
