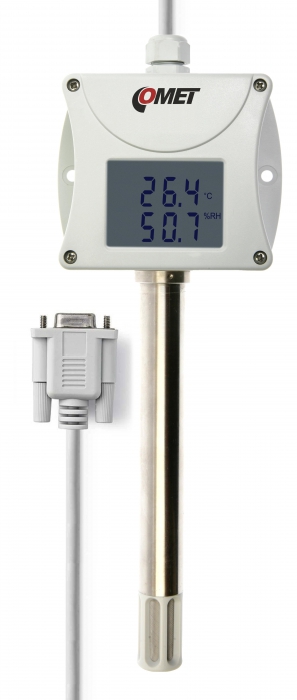

Temperature and humidity probe with RS232 output
Humidity, temperature transmitter. Outdoor, indoor use. Duct mount.
Relative humidity, temperature sensors at 150mm stem. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.
-
codeT3313
-
Warranty3 years
- $386
Technical data
Measured value
Temperature
Relative humidity
Counted values (dew point…)
TEMPERATURE SENSOR
Measuring range
-30 to +125 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature and humidity sensor
Counted values
dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output
RS232
Range of humidity sensor temperature compensation
all temperature range
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
ModBus RTU and Advantech ADAM compatible protocol
Power
9-30 Vdc
Protection class
IP65 electronics; IP40 sensors
Dimensions
88,5 x 250 x 39,5 mm; stem length 150 mm
Weight
approx. 150 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
● relays output 250Vac / 8A or 50 V on selected models
Optional accessories and download
Ac/dc adapter 12V/450mA stabilized, EU
code
A1510eu
Price
$24
In stock
36 pcs
Ac/dc adapter 12V/450mA stabilized, UK
code
A1510uk
Price
$24
In stock
on request
Ac/dc adapter 12V/450mA stabilized, US
code
A1510us
Price
$24
In stock
on request
Accredited temperature and relative humidity calibration
code
SLU003
Price
$112
In stock
on request
Transducer USB/RS232 complete
code
MP006
Price
$70
In stock
8 pcs
sintered bronze sensor cover
code
F0000
Price
$38
In stock
on request
plastic sensor protection with stainless filter (gray)
code
F5200
Price
$24
In stock
on request
PTFE sensor protection, white
code
F5300
Price
$76
In stock
on request
Humidity Standard 10%RH, set 5pcs
code
HM023
Price
$142
In stock
16 pcs
Humidity Standard 80%RH, set 5pcs
code
HM024
Price
$142
In stock
14 pcs
Female connector ELKA 4012PG7 for TxxxxL
code
K1427
Price
$30
In stock
on request
Vessel for adjustment and calibration of humidity
code
MD046
Price
$90
In stock
10 pcs
PP4 Flat circular flange
code
PP4
Price
$14
In stock
41 pcs
PP90 Right-angled stainless steel flange
code
PP90
Price
$14
In stock
32 pcs
plastic gland for direct mounting of the humidity probe
code
SP004
Price
$6
In stock
31 pcs
Tool for easy connection to WAGO terminals 233 for serial output transmitters
code
SP006
Price
$6
In stock
22 pcs
Transmitter version with watertight male connector
code
TxxxxL
Price
$30
In stock
on request
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor RS485/232 utility (1-0-0-18)
Conversions - application for recalculation of values
Others
3D model T3313
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Description of communication protocols of Tx3xx and Tx4xx transmitters with RS232 and RS485 communication interface
Catalogs
CATALOG - Digital sensors and regulators with serial RS485/RS232 output
Catalogue Sheets - COMET Transmitters
