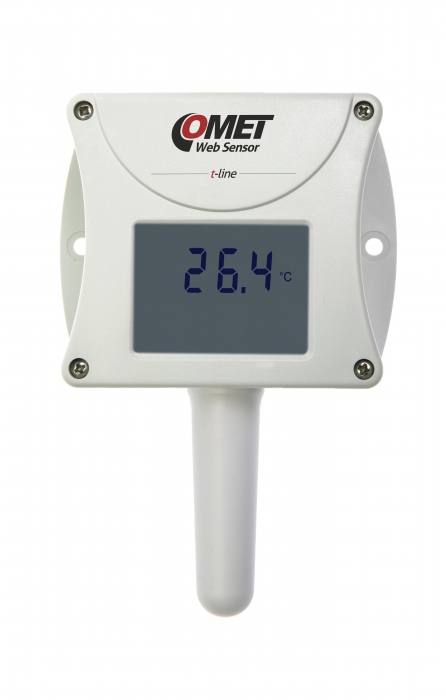

WebSensor - remote thermometer with Ethernet interface
Ambient temperature t-line Web sensor. Remote alarm.
Web Sensor with built-in temperature sensor.

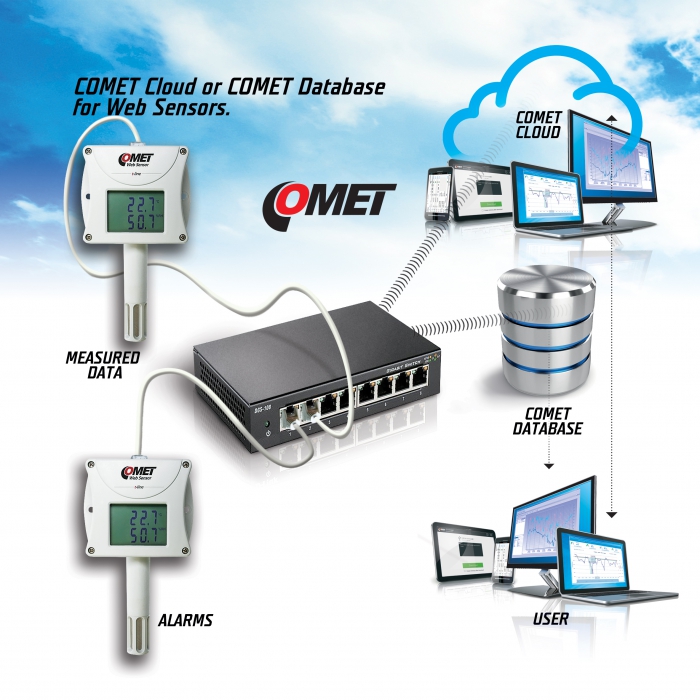

Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
-
codeT0510
-
Warranty3 years
- $444
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-30 to +80 °C
Accuracy
±0.6 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +80 °C
Channels
internal temperature sensor
Output
Ethernet
Measuring interval
2 s
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail, SNMP Trap, Syslog
Power
9-30 Vdc
Protection class
IP30
Dimensions
88,5 x 126 x 39,5 mm; stem length 53 mm
Weight
approx. 145 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.
Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.
Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● communication protocols SNMP, Modbus TCP, SOAP, XML

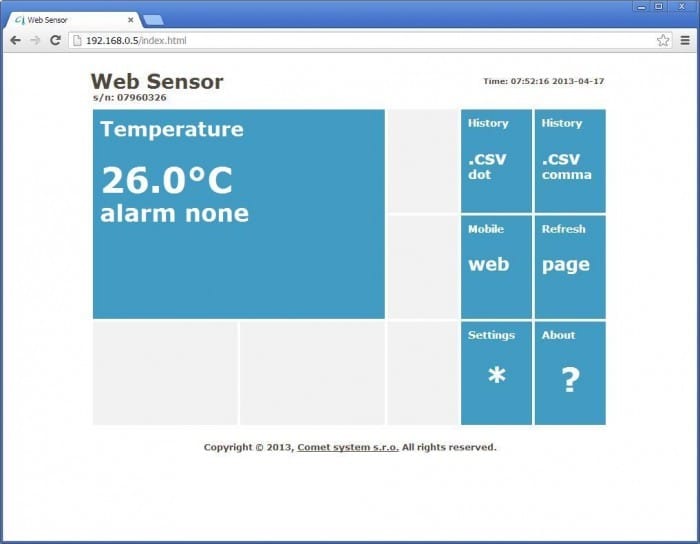

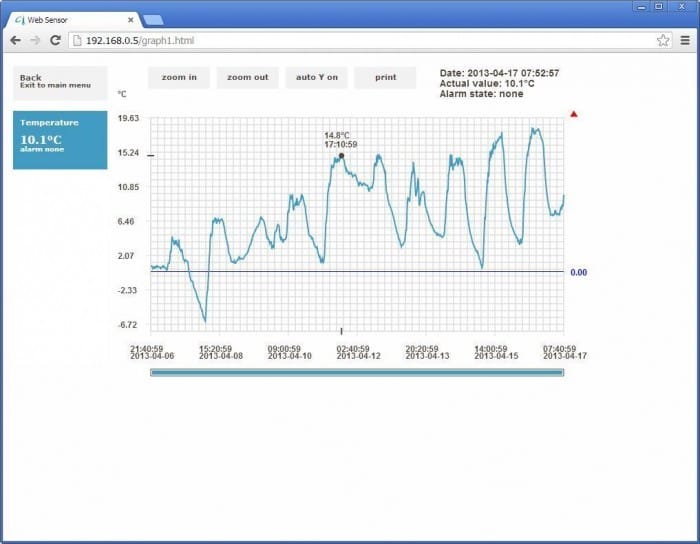

● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE
● data analysis in COMET Database software
Optional accessories and download
ac/dc adapter 120Vac to 12Vdc/1A, EU
code
A1515eu
Price
$24
In stock
143 pcs
ac/dc adapter 120Vac to 12Vdc/1A, UK
code
A1515uk
Price
$24
In stock
4 pcs
ac/dc adapter 120Vac to 12Vdc/1A, US
code
A1515us
Price
$24
In stock
10 pcs
Accredited temperature calibration
code
SLU001
Price
$78
In stock
on request
KIT-GSM with modem
code
KIT-GSM-W
Price
$360
In stock
on request
TL-POE10R - PoE splitter
code
TL-POE
Price
$62
In stock
15 pcs
300Mbps Wireless N Nano Router
code
TL-WIFI
Price
$82
In stock
6 pcs

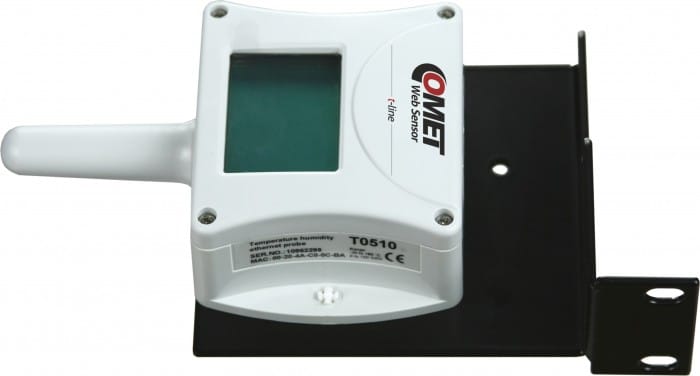

Sensor holder for mounting to rack 19"
code
MP046
Price
$24
In stock
43 pcs
COMET Database
code
CDB
Price
$900
In stock
yes
COMET Cloud
code
cloud
Price
On request
In stock
yes
Database Viewer for Comet Database
code
DBV
Price
$148
In stock
yes
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
3D model T0510
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
How to add WebSensor to COMET Cloud
MIB
Software development kit (SDK)
Catalogs
CATALOG - WebSensor with Ethernet output
Catalogue Sheets - COMET Premium WebSensors
