Software for COMET Monitoring Systems
Software for COMET Monitoring Systems series MS55D and MS6xx.
THIS PROGRAM IS MAIN COMPONENT FOR RUNNING COMET DATABASE WITH COMET MONITORING SYSTEMS
-
codeSWR003
- $268
Technical data
DATA HANDLING
Download record from the data logger
Yes
Open record from the file
Yes
Show data into the table
Yes
Data export to DBF
Yes
Data export to XLS
Yes
Print data from the table
Yes
Statistics
Yes
GENERAL FEATURES
Events logging (Event viewer)
Yes
Languages in the program
Yes
GRAPHIC COMPONENT
Graph
Yes - paid version
Graph export to PDF
Yes - paid version
Graph print
Yes - paid version
PROGRAM SETTINGS
Autodownload
Yes - paid version
Record download with export to DBF
Yes - paid version
Folders and files settings
Yes - paid version
Program security (users and passwords)
Yes - paid version
ON-LINE MONITORING
Display mode
Yes
Alarms in the display mode
Yes
Graph in the display mode
Yes - paid version
Data table in the display mode
Yes - paid version
DATALOGGER HANDLING
Data logger configuration
Yes
Data logger memory erase
Yes
Alarm signalization confirmation
Yes
Read configuration from the file
Yes
COMET DATABASE
Data export to the DLDB database
Yes - paid version
Data download with export to the DLDB database
Yes - paid version
Autodownload with export to the DLDB database
Yes - paid version
Features
User friendly software for currently produced COMET monitoring systems MSxx. Allows clear reading and working with the data.
Software consists of communication and analytical section, which allows working with tables and charts.
Intuitive and clear interface software ensures easy operation as well as the novice who first encounters with the logger COMET. Software is fully compatible with Windows.
Features

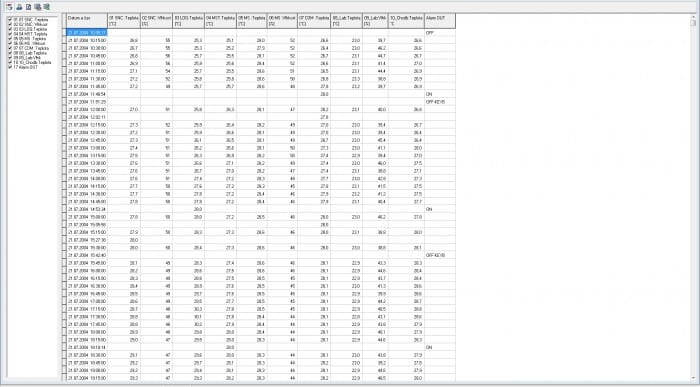

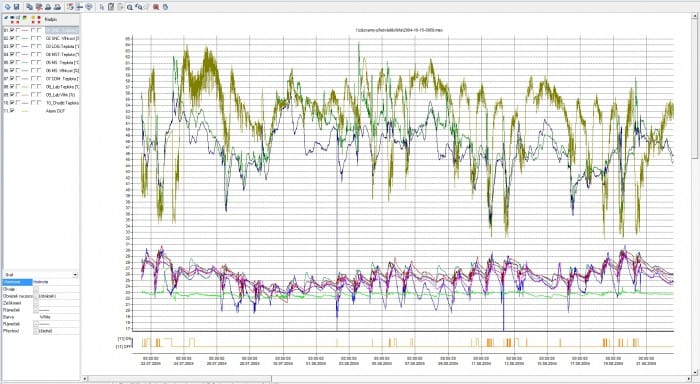

- clear presentation of measured data in tables and charts
- easy export to MsExcel files or PDF
- software allows to control all MS functions, browsing and print of record in tables or charts
- easy setup of the MS system, step by step, using an intuitive setup Wizard.
Export
Easy export of measured data to XLS or DBF files. Export of measured data can be fully automatized. Software allows communication with MS monitoring systems via RS232, RS485, USB, viam GSM modem or via Ethernet.
Statistic
In table mode can be easily and clearly showed measured maximal or minimal value, average, deviation a number of stored values.
After purchasing the licenced version of SWR004 customer will receive a license code, which will be registered on http://swregistration.cometsystem.cz, together with the number of computers for which the licence was purchased.
Automatic download
MS monitoring system is able to send data to PC automatically. Data is send via communication interfaces RS232, RS485, USB, Ethernet or GSM modem.
Frequency of automatic reading can be set. This feature is available even if more MS systems is connected together.
Real time monitoring
MS system allows to monitor all monitored sites in real time. Charts, tables, alarms can be displayed in "DISPLAY" mode. Then can be actual status of measure values seen. This mode can be shared on multiple computers.
Web interface
Current data can be displayed in web browser using HTML pages. Process of measuring can be simultaneously monitored by several user groups (techniques, management, etc.). Device must be connected to the Internet/Intranet.
Minimum hardware and software requirements to install the COMET software
- Operating System: Windows 7 and later, or Windows Server 2008 R2 and later; . NET Framework 4 or 4.5, COMET Database 10.0 and higher
- Processor speed: 1.4GHz
- Memory: 1GB RAM
The licence is not portable and can be used only on PC where was installed.

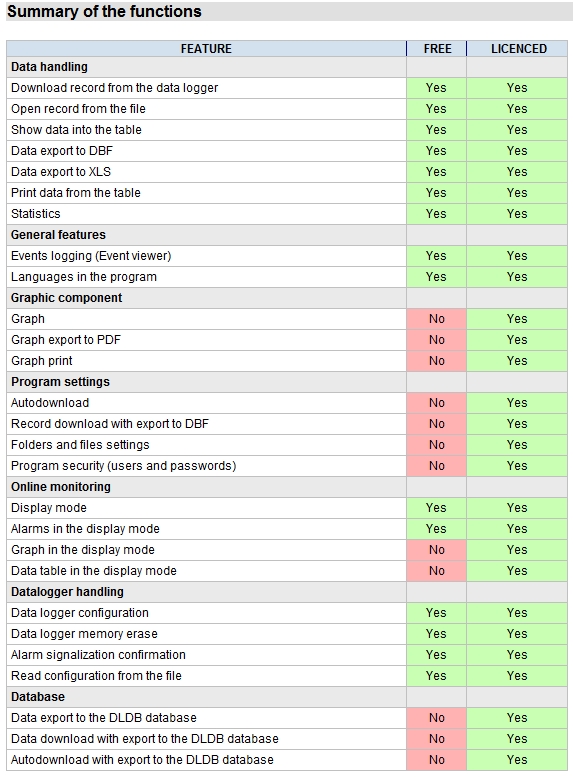

Differents between program functions
