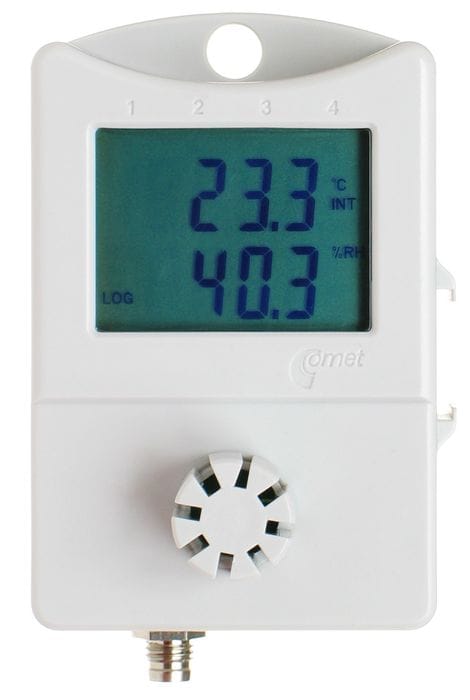

Thermo-hygrometer for external temperature probe
Data logger is designed for record of temperature and humidity. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper communication adapter.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.
-
codeS3631
-
Warranty3 years
- On request
Technical data
TEMPERATURE SENSOR
Measuring range
-30 to +70 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
TEMPERATURE SENSOR - external probe Pt1000
Measuring range
-90 to +260 °C
Accuracy
±0.2 °C (-50 to +100 °C);
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
0 to 100 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0,1 % RH
DEW POINT
Measuring range
-60 to +70 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-30 to +70 °C
Channels
internal temperature and humidity sensor, 1x external temperature probe
Memory
32,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Display and alarm refresh
each 10 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
lithium battery 3.6 V; size AA
Battery life
6 years
Protection class
IP67 electronics; IP30 sensors
Dimensions (without connectors)
93 x 64 x 29 mm
Weight (including batteries)
approx. 115 g
Warranty
3 years
Features
Applications:
Healtcare and laboratories - Monitoring of storage areas at temperatures up to -90 ° C.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -90 ° C to + 260 ° C.
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Humidity, Dew point, Current (4 – 20 mA), Voltage (0 – 5 V, 0 – 10 V), Pulses, Events
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years
Optional accessories and download
Pt1000TG8/E, temperature probe
Temperature range: -80 to 200°C
code
SN104E
Price
$84
In stock
on request
Pt1000TG8/E, temperature probe, cable 2 m
Temperature range: -80 to 200°C
code
SN105E
Price
$88
In stock
153 pcs
Pt1000TG8/E, temperature probe, cable 5 m
Temperature range: -80 to 200°C
code
SN108E
Price
$102
In stock
42 pcs
Pt1000TG8/E, temperature probe, cable 10 m
Temperature range: -80 to 200°C
code
SN113E
Price
$130
In stock
82 pcs
Pt1000TG7/E, temperature probe
Temperature range: -50 to 200°C
code
SN164E
Price
$110
In stock
1 pcs
Pt1000TG7/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN165E
Price
$118
In stock
on request
Pt1000TG7/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN166E
Price
$128
In stock
4 pcs
Pt1000TG7/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN167E
Price
$148
In stock
3 pcs
2301-220/E, temperature probe, cable 1 m
Temperature range: -30 to 220°C
code
SN168E
Price
$196
In stock
3 pcs
2021-150/E, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN169E
Price
$296
In stock
3 pcs
PTS350A-2/0, temperature probe, cable 2 m
Temperature range: -30 to 130°C
code
SN170E
Price
$114
In stock
2 pcs
Ambient temperature probe, 200-80/E
Temperature range: -30 to 80°C
code
SN171
Price
$50
In stock
63 pcs
2034-220/E, temperature probe, cable 1 m
Temperature range: -30 to 150°C
code
SN175E
Price
$184
In stock
18 pcs
2061-200/E, temperature probe, cable 1 m
Temperature range: -50 to 200°C
code
SN178E
Price
$220
In stock
7 pcs
2061-200/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN179E
Price
$226
In stock
on request
2061-200/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN180E
Price
$244
In stock
3 pcs
2061-200/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN181E
Price
$272
In stock
on request
PTS350A-5/E, temperature probe, cable 5 m
Temperature range: -30 to 130°C
code
SN182E
Price
$126
In stock
13 pcs
PTS350A-10/E, temperature probe, cable 10 m
Temperature range: -30 to 130°C
code
SN183E
Price
$146
In stock
9 pcs
Pt1000TGL40/E, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN185E
Price
$78
In stock
8 pcs
Pt1000TGL40/E, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN186E
Price
$82
In stock
12 pcs
Pt1000TGL40/E, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN187E
Price
$88
In stock
18 pcs
Pt1000TGL40/E, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN188E
Price
$102
In stock
17 pcs
Pt1000TR160/E, temperature probe, cable 1 m
Temperature range: -30 to 80°C
code
SN199E
Price
$68
In stock
11 pcs
Pt1000TR160/E, temperature probe, cable 2 m
Temperature range: -30 to 80°C
code
SN200E
Price
$70
In stock
28 pcs
Pt1000TR160/E, temperature probe, cable 5 m
Temperature range: -30 to 80°C
code
SN201E
Price
$78
In stock
65 pcs
Pt1000TR160/E, temperature probe, cable 10 m
Temperature range: -30 to 80°C
code
SN202E
Price
$88
In stock
116 pcs
Pt1000TR160/E, temperature probe, cable 15 m
Temperature range: -30 to 80°C
code
SN203E
Price
$108
In stock
24 pcs
Pt1000TR160/E, temperature probe, cable 20 m
Temperature range: -30 to 80°C
code
SN204E
Price
$120
In stock
76 pcs
2091-250/E, Stick-in probe, cable 1 m
Temperature range: -50 to 250°C
code
SN210E
Price
$238
In stock
1 pcs
2091-250/E, Stick-in probe, cable 2 m
Temperature range: -50 to 250°C
code
SN211E
Price
$252
In stock
1 pcs
2091-250/E, Stick-in probe, cable 5 m
Temperature range: -50 to 250°C
code
SN212E
Price
$300
In stock
6 pcs
2091-250/E, Stick-in probe, cable 10 m
Temperature range: -50 to 250°C
code
SN213E
Price
$382
In stock
2 pcs
Pt1000TG68/E, temperature probe, cable 2 m
Temperature range: -50 to 200°C
code
SN232E
Price
$120
In stock
5 pcs
Pt1000TG68/E, temperature probe, cable 5 m
Temperature range: -50 to 200°C
code
SN233E
Price
$136
In stock
on request
Pt1000TG68/E, temperature probe, cable 10 m
Temperature range: -50 to 200°C
code
SN234E
Price
$162
In stock
10 pcs
Pt1000TR125/E, cryogenic temperature probe, cable 1 m
Temperature range: -190 to 150°C
code
SN239E
Price
$214
In stock
8 pcs
Pt1000TR125/E, cryogenic temperature probe, cable 2 m
Temperature range: -190 to 150°C
code
SN240E
Price
$234
In stock
30 pcs
Pt1000TR125/E, cryogenic temperature probe, cable 5 m
Temperature range: -190 to 150°C
code
SN241E
Price
$292
In stock
30 pcs
Pt1000TR125/E, cryogenic temperature probe, cable 10 m
Temperature range: -190 to 150°C
code
SN242E
Price
$390
In stock
18 pcs
Pt1000TR050S/E, temperature probe, cable 1 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 2 m
Temperature range: -50 to 400°C
Discontinued
Pt1000TR050S/E, temperature probe, cable 5 m
Temperature range: -50 to 400°C
Discontinued
Ultra thin temperature probe Pt1000TG3/E, ELKA connector
Temperature range: -50 to 200°C
code
SN252E
Price
$96
In stock
21 pcs
Temperature probe Pt1000TR050S/E, ELKA connector, cable 10 meters
Temperature range: -50 to 400°C
Discontinued
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II
Temperature range: -30 to 180°C
code
SN263E
Price
$134
In stock
1 pcs
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 2 meters
Temperature range: -30 to 180°C
code
SN264E
Price
$138
In stock
2 pcs
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 5 meters
Temperature range: -30 to 180°C
code
SN265E
Price
$154
In stock
on request
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 10 meters
Temperature range: -30 to 180°C
code
SN266E
Price
$180
In stock
1 pcs
Temperature probe Pt1000TG8Ex/E, ELKA connector, for ATEX zone II, cable 15 meters
Temperature range: -30 to 180°C
code
SN267E
Price
$222
In stock
on request
Lithium battery 3,6V/AA
code
A4203
Price
$24
In stock
1 pcs
Accredited temperature calibration
code
SLU001
Price
$78
In stock
on request
Accredited temperature and relative humidity calibration
code
SLU003
Price
$112
In stock
on request
KIT - GSM/GPRS modem LP040 with accessories for Sxxxx, Rxxxx loggers
code
KIT-GSM-L
Price
$606
In stock
on request
USB adapter
code
LP003
Price
$80
In stock
7 pcs
Start/stop magnet
code
LP004
Price
$10
In stock
46 pcs
COM adapter with protection IP65
code
LP012
Price
$88
In stock
7 pcs
GSM/GPRS MODEM for data loggers of Sxxxx, Rxxxx, Gxxxx families
code
LP040
Price
$504
In stock
7 pcs
Transducer USB/RS232 complete
code
MP006
Price
$70
In stock
8 pcs
Antenna for GSM modem
code
MP009/1
Price
$40
In stock
192 pcs
Wall holder for GPRS modem
code
MP036
Price
$12
In stock
15 pcs
DIN Rail 35mm holder for GPRS modem
code
MP037
Price
$30
In stock
11 pcs
Communication cable for GSM modem
code
QMS2901
Price
$14
In stock
on request
One time fee for using M2M server - applied for each data logger with modem
code
SLU302
Price
$124
In stock
on request
wall holder for datalogger
code
F9000
Price
$34
In stock
11 pcs
Self Adhesive Dual Lock
code
MD036
Price
$6
In stock
296 pcs
sintered bronze sensor cover
code
F0000
Price
$38
In stock
on request
PTFE sensor protection, white
code
F5300
Price
$76
In stock
on request
COMET Database
code
CDB
Price
$900
In stock
yes
Software for COMET TPrints and GSM modems
code
SWR001
Price
On request
In stock
yes
Humidity Standard 10%RH, set 5pcs
code
HM023
Price
$142
In stock
16 pcs
Humidity Standard 80%RH, set 5pcs
code
HM024
Price
$142
In stock
14 pcs
Female ELKA3008V connector
code
K1321
Price
$30
In stock
on request
Vessel for adjustment and calibration of humidity
code
MD046
Price
$90
In stock
10 pcs
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Android downloder from S/R dataloggers
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Dataloggers
Related products
Temperature and humidity data logger with connector for another temperature probe
code
U3631
Price
$562
In stock
on request
