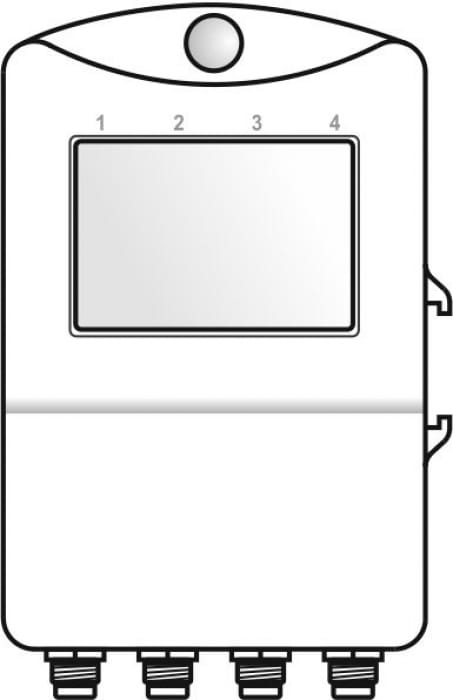

Thermometer for 2 external probes + 2x 0-5V inputs with display

Thermometer is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter, LAN adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

code

S0541
Warranty

3 years

On request

Buy

Add to quote

Technical data

Operating temperature range -30 to +70°C

Accuracy of temperature input without probe ±0.2°C from -50 do +100°C
±0.2% from reading from +100 to +260°C
±0.4% from reading from –90 to –50°C

Resolution of the reading 0.1°C

Accuracy of 0-5Vdc inputs ±0.2% FS

Real time clock year, leap year, month, day, hour, minute, second

Data logging interval adjustable from 10s to 24h

Display and alarm refresh each 10 s

Total memory capacity 32000 temperature values in noncyclic logging mode

Data logging mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Dimensions 93x64x29mm

Power Lithium battery 3,6V, size AA

Typical battery life 5 years

Battery life in continuous on-line mode with interval 1 minute reduced to 70% of the above life

Battery life in continuous on-line mode with interval 10 second 1 year

IP protection IP67 - protected against influence of temporary immersion into water

Weight including battery 130g

Warranty 3 years

Features

Applications:

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -90 ° C.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -90 ° C to + 260 ° C.

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Humidity, Dew point, Current (4 – 20 mA), Voltage (0 – 5 V, 0 – 10 V), Pulses, Events
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years
