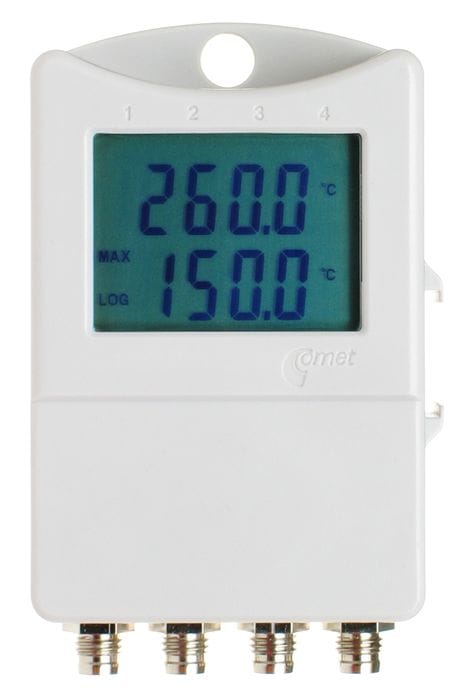

Thermometer for 4 external probes with display
Thermometer is designed for record of temperature. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter.
The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.
For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.
-
codeS0141
-
Warranty3 years
- On request
Technical data
TEMPERATURE SENSOR - external probe Pt1000
±0.2 % from reading from +100 to +260 °C;
±0.4 % from reading from -90 to -50 °C
GENERAL TECHNICAL DATA
cyclic - after filling memory oldest data is overwritten by new
Features
Applications:
![Aplikace - Zdravotnictví a laboratoře](/userfiles/image/features/ico_application_pharmacy_and_laboratory.jpg)
Healtcare and laboratories - Monitoring of storage areas at temperatures up to -90 ° C.
![Aplikace - Sklady](/userfiles/image/features/ico_application_food_industry.jpg)
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
![Aplikace - Průmysl](/userfiles/image/features/ico_application_industry.jpg)
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
![Aplikace - Sklady](/userfiles/image/features/ico_application_stores.jpg)
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -90 ° C to + 260 ° C.
![Aplikace - Serverovny a datová centra](/userfiles/image/features/ico_application_meteorology.jpg)
Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.
Features description:
* the features may vary depending on the device type● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years
![Záruka 3 roky](/userfiles/image/features/picto_extended_warranty.jpg)
![Kalibrační list](/userfiles/image/features/picto_calibration-certificate.jpg)
![Teplotní čidlo](/userfiles/image/features/picto_t-sensor.jpg)
![Teplotní čidlo](/userfiles/image/features/picto_rh-sensor.jpg)
![Dvoustavové vstupy](/userfiles/image/features/picto_two-state.jpg)
![Čítač pulsů](/userfiles/image/features/picto_pulses.jpg)
![Napětí](/userfiles/image/features/picto_0-10V_output.jpg)
![Proud](/userfiles/image/features/picto_4-20mA_output.jpg)
![Dvouřádkový LCD displej](/userfiles/image/features/picto_disp.jpg)
![Vnitřní paměť](/userfiles/image/features/picto_memory.jpg)
![Napájení bateriemi](/userfiles/image/features/picto_batery-power.jpg)
