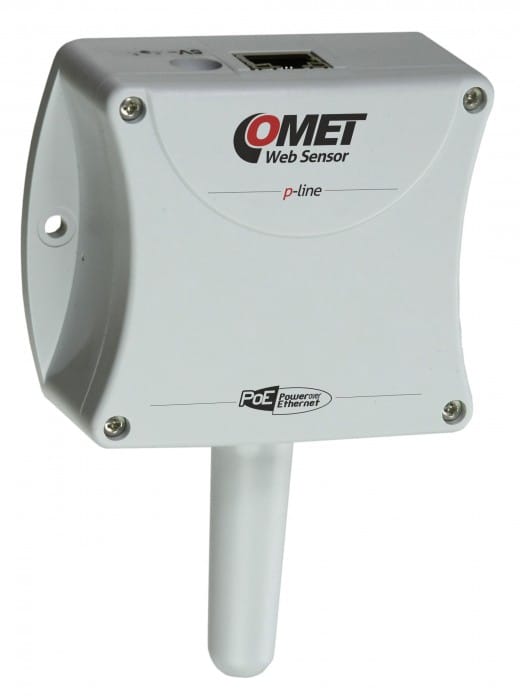

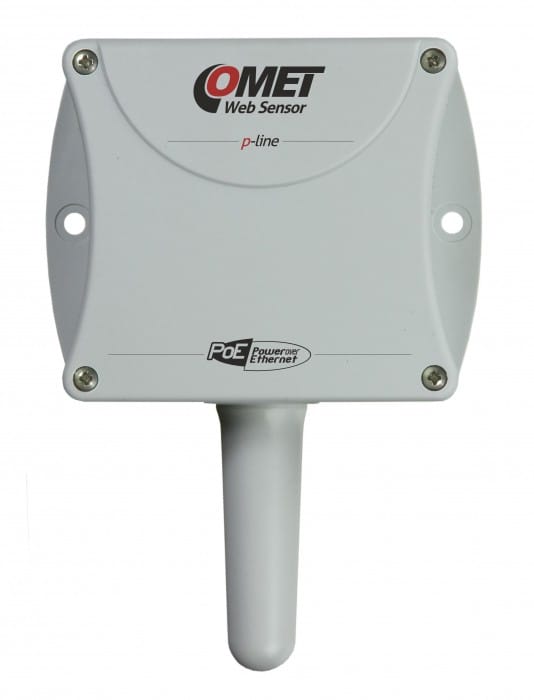

Web Sensor with PoE - remote thermometer
P-line Web Sensor with built-in temperature sensor and PoE - Power over Ethernet feature. Remote alarm.

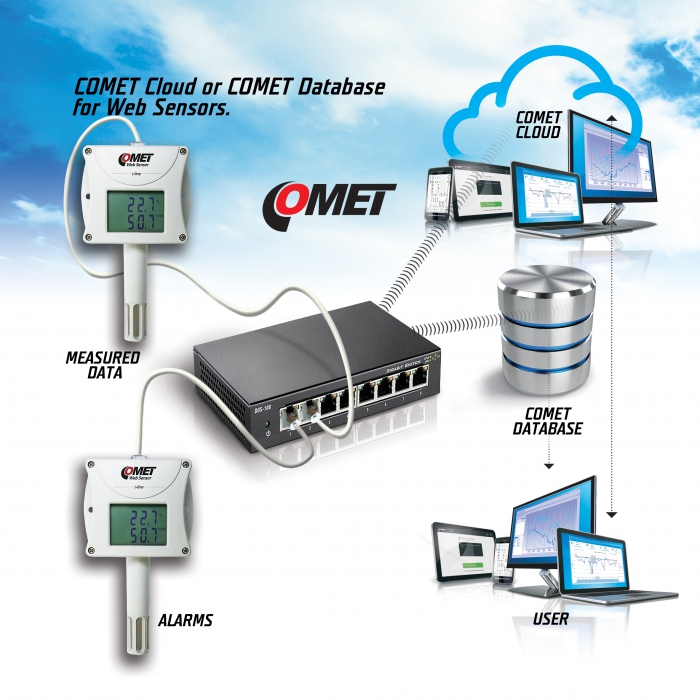

Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
-
codeP8610
-
Warranty3 years
- $384
Technical data
Measured value
Temperature
TEMPERATURE SENSOR
Measuring range
-20 to +60 °C
Accuracy
±0.8 °C in the range teplot od -10 °C do +80°C; ±2,0 °C in the range teplot od -10 °C do -30 °C
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-20 to +60 °C
Channels
internal temperature sensor
Output
Ethernet
Measuring interval
2 s
Available temperature units
degrees Celsius, degrees Fahrenheit
Communication protocol
WWW, ModbusTCP, SNMPv1, SOAP, XML
Alarm protocols
E-mail, SNMP Trap, Syslog
Power
Power over Ethernet according to IEEE 802.3af or 5Vdc
Protection class
IP30
Dimensions
88 x 126 x 39,5 mm; stem length 53 mm
Weight
approx. 130 g
Warranty
3 years
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.
Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.
Healtcare and laboratories - Monitoring of storage areas at temperatures up to -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Features description:
* the features may vary depending on the device type● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events

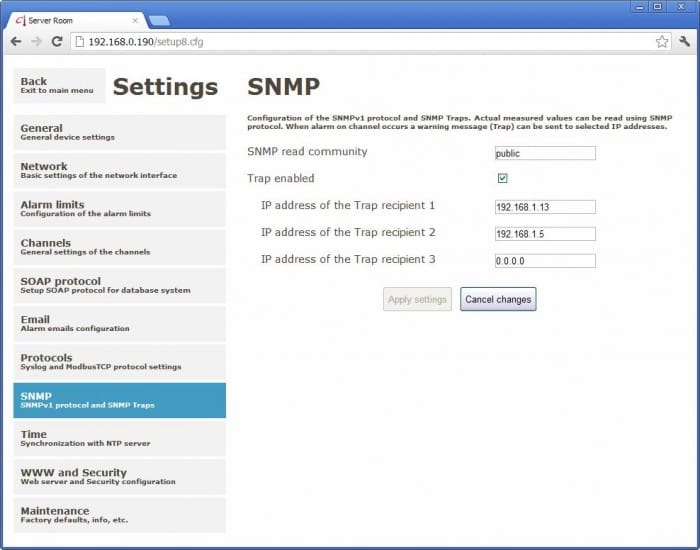

● communication protocols SNMP, Modbus TCP, SOAP, XML

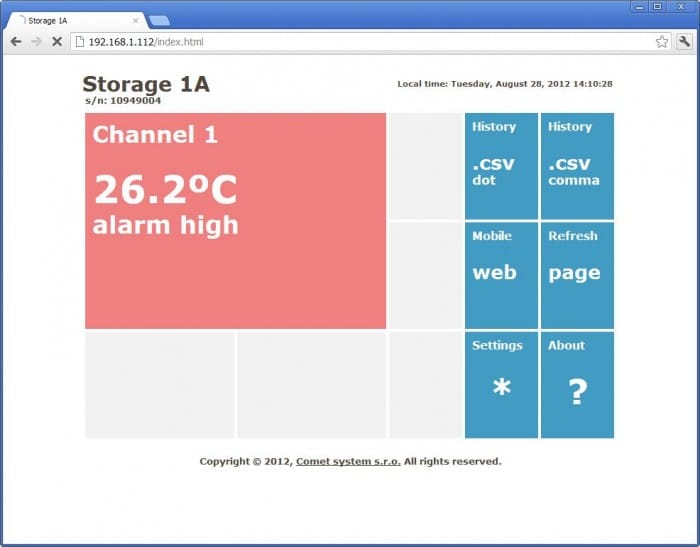

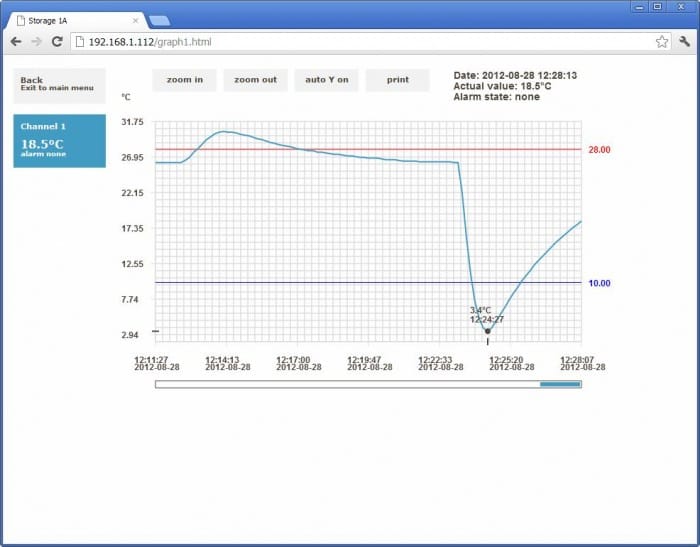

● webserver to display current and recorded values
● alarm indication via email
● selected models with PoE
● data analysis in COMET Database software
Optional accessories and download
