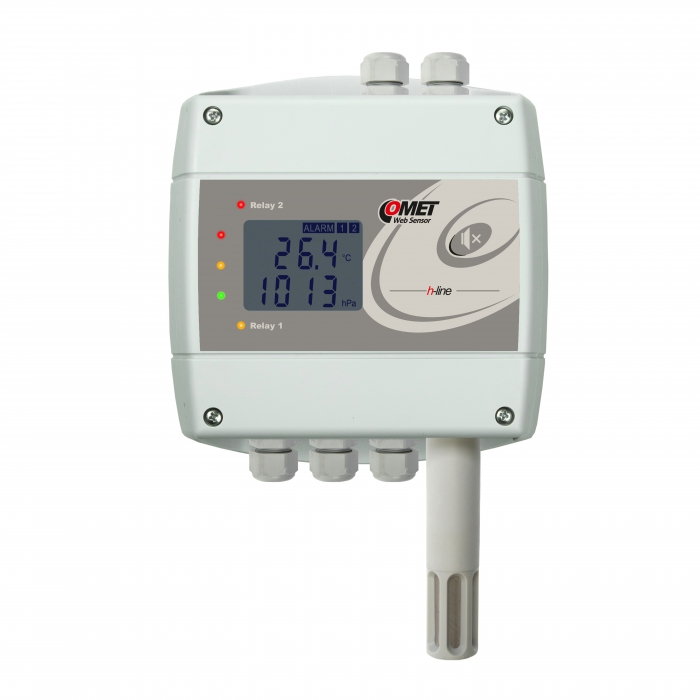

Thermometer hygrometer barometer with Ethernet interface and relays
Ambient temperature, relative humidity, atmospheric pressure with two relay outputs. Humidex reading.
Sensor H7530 is designed for online monitoring of temperature, relative humidity of air without aggressive substances. Three binary inputs to detection of two-states signals are the advantage. Other devices are controlled by two relay outputs.
High precision capacitive polymer sensor ensures excellent long term calibration stability and ultimate accuracy. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy.
Processing and analysis of measured data:
- online in COMET Cloud
- COMET Database software
- integration into 3-party systems
-
codeH7530
-
Warranty3 years
- $940
Technical data
Measured value
TEMPERATURE SENSOR
HUMIDITY SENSOR
DEW POINT
ATMOSPHERIC PRESSURE SENSOR SENSOR

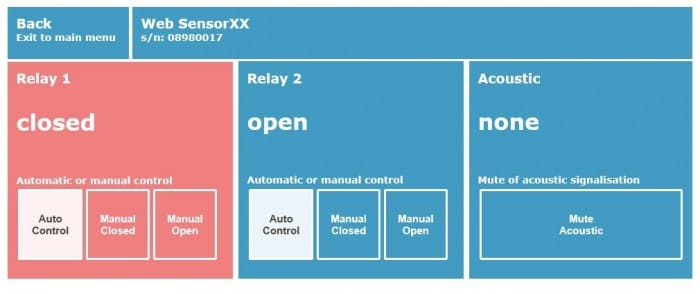

RELAY OUTPUTS

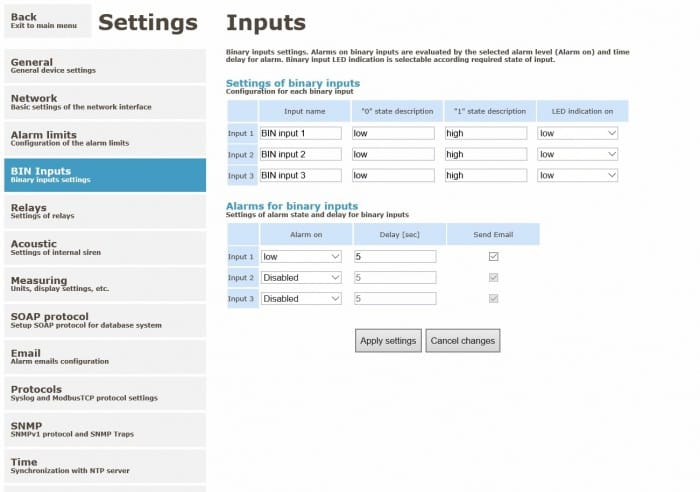

BINARY INPUTS
Inputs are not galvanically isolated.
GENERAL TECHNICAL DATA
Features
Applications:
Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C. Sending data to COMET Database or SCADA third-party systems.
Data centers, server rooms - Temperature and humidity monitoring, data center monitoring, RACK stands, including flood status reports, opening / closing of doors (windows), motion, smoke. SNMP monitoring, remote alarms by email and Syslog.
Healtcare and laboratories - -200 °C.
Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.
Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.
Features description:
* the features may vary depending on the device type
Optional accessories and download
ac/dc adapter 120Vac to 12Vdc/1A, EU
ac/dc adapter 120Vac to 12Vdc/1A, UK
ac/dc adapter 120Vac to 12Vdc/1A, US
Accredited temperature and relative humidity calibration
Accredited atmospheric pressure calibration
KIT-GSM with modem
TL-POE10R - PoE splitter
300Mbps Wireless N Nano Router
Holder for mounting the COMET Transmitter on magnetic surfaces
sintered bronze sensor cover
PTFE sensor protection, white
COMET Database
COMET Cloud
Database Viewer for Comet Database
Motion detector JS20
The LD-12 flood detector
Magnetic door contact SA-200-A
Magnetic door contact with cable length 10m
Magnetic door contact with cable length 15m
Magnetic door contact with cable length 2m
Magnetic door contact with cable length 20m
Magnetic door contact with cable length 30m
Magnetic door contact with cable length 5m
The optical smoke detector SD-283ST
Power detector SP008
Humidity Standard 10%RH, set 5pcs
Humidity Standard 80%RH, set 5pcs
Vessel for adjustment and calibration of humidity
Tool for easy connection to WAGO terminals 233 for serial output transmitters
Software
Comet Database One Click Installer (21.1-V)
Database Viewer 3.20.0.0 dbapi 21.1
TSensor (3-5-5-0)
Sensor Reader (2-0-8-0)
Conversions - application for recalculation of values
COMET Cloud Lite - Android (Google Play)
COMET Cloud Lite - iOS (App Store)
Others
Terms and Conditions COMET System s.r.o.
Manuals
Quick Start Manual
Declaration of Conformity
How to add WebSensor to COMET Cloud
MIB
Software development kit (SDK)
Catalogs
CATALOG - WebSensors with Ethernet output and relay Catalog
Catalogue Sheets - COMET Premium WebSensors & Regulators
