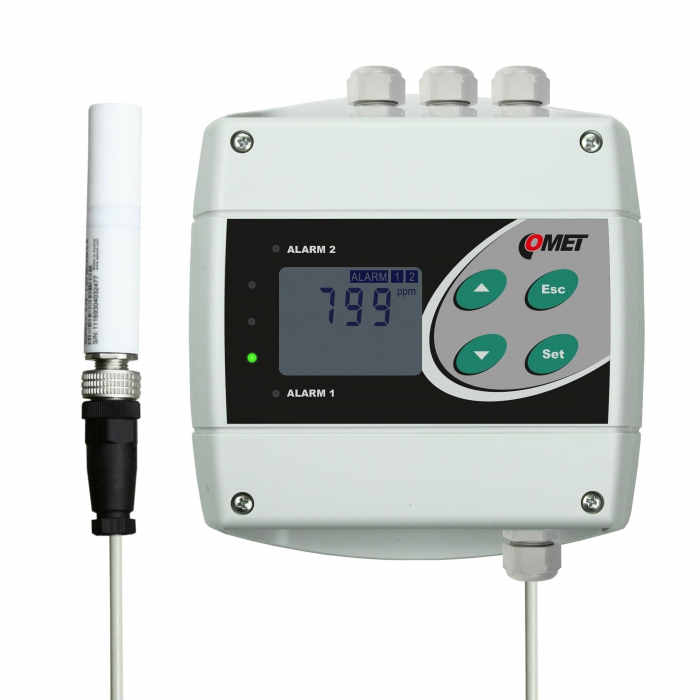

CO2 concentration transmitter with two relay outputs
CO2 level transmitter with two output relays.
The device is supplied with CO2 probe with 1m cable. Cable lengths 2 or 4 meters available optionally.
Green LED shines - CO2 concentration 0 to 1000 ppm
Yellow LED shines - CO2 concentration 1001 to 1200 ppm
Red LED shines - CO2 concentration 1201 ppm and more
-
codeH5021
-
Warranty3 years
- $1 538
Technical data
Measured value
CO2
CO2 SENSOR
Measuring range
0 to 10 000 ppm
Accuracy
±(100ppm +5% from reading) at 25°C and 1013hPa
Resolution
1 ppm
RELAY OUTPUTS
Quantity
2
Maximal voltage
50 V
Maximal current
2 A
Maximal power
60 VA
GENERAL TECHNICAL DATA
Operating temperature
-30 to +60 °C
Channels
1x external CO2 sensor
Acoustic alarm
from built-in beeper - switchable
Power
9-30 Vdc
Protection class
IP65
Dimensions
136 x 150 x 45 mm
External probe cable length CO2
1 meter (optionally 2 or 4 meters)
Weight
approx. 360 g
Warranty
3 years
