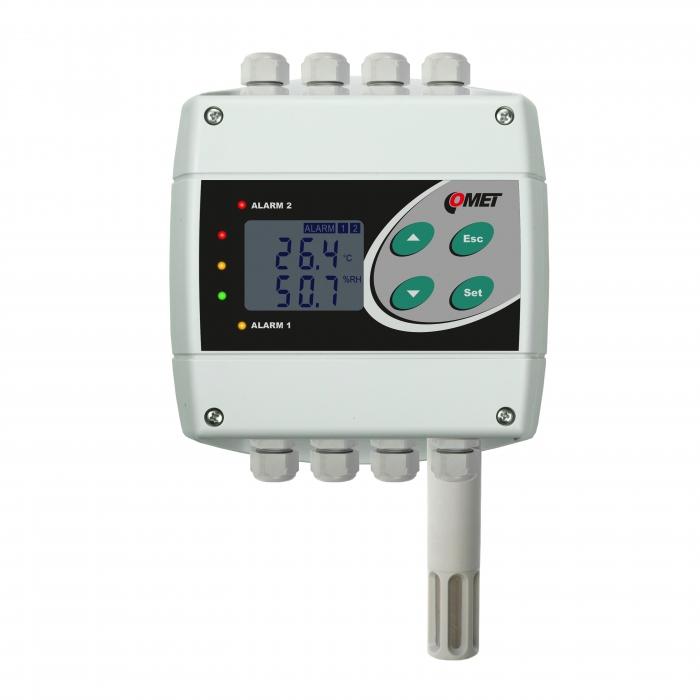

Temperature and humidity regulator with RS485 output

Humidistat, thermostat with two relay outputs. Outdoor, indoor use.

Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy. Three two-state inputs.

code

H3430
Warranty

3 years

$738

Buy

Add to quote

Technical data

Measured value

Temperature

Relative humidity

Counted values (dew point…)

Two-state signal

TEMPERATURE SENSOR

Measuring range -30 to +80 °C

Accuracy ±0.4 °C

Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH

Accuracy ±2.5 % RH from 5 to 95 % at 23 °C

Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C

Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %

Resolution 0.1 °C

RELAY OUTPUTS

Quantity 2

Maximal voltage 50 V

Maximal current 2 A

Maximal power 60 VA

BINARY INPUTS

Quantity 3

Signal for binary inputy dry contact, open collector or two-state voltage signal.
Inputs are not galvanically isolated.

Minimum pulse duration on binary input 500 ms

Voltage across open contact < 3,3 V

Low voltage level 0 to +0,5 V

High voltage level +3,0 to +30 V

GENERAL TECHNICAL DATA

Operating temperature -30 to +80 °C

Channels internal temperature and humidity sensor

Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy

Acoustic alarm from built-in beeper - switchable

Output RS485

Range of humidity sensor temperature compensation all temperature range

Available temperature units degrees Celsius, degrees Fahrenheit

Communication protocol ModBus RTU, ARION, Advantech ADAM

Power 9-30 Vdc

Protection class IP65 electronics; IP40 sensors

Dimensions 136 x 159 x 45 mm; length/diameter of external probe 88/18 mm

Weight approx. 500 g

Warranty 3 years

Features

Applications:

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Healtcare and laboratories - -200 °C.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO₂, Two-state events
● industrial or interior design with protection up to IP65

● integrated sensors, external probe, duct mount design
● relays output 250Vac / 8A or 50 V on selected models
