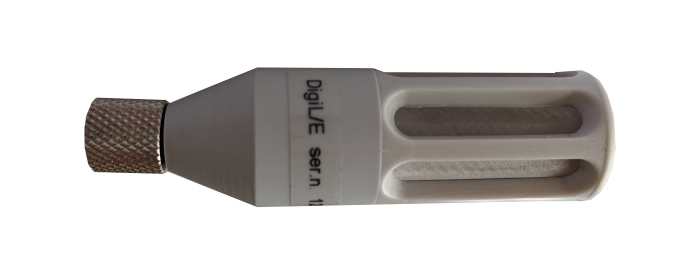

Digital temperature/humidity probe
Digital probe with connector ELKA, direct insertion.
Stainless steel mesh filter.
The probe is supplied with a calibration certificate.
The probe is interchangeable without calibration to a specific device and regardless of the length of the cable.
Optionally also available with cable of various lengths. Other cable lengths you can find in optional accessories.
-
codeDIGIL/E
- $190
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-20 to +80 °C
Accuracy
±0.4 °C
Response time
t90 < 15 min, temperature step 20 °C, air flow 1 m/s
HUMIDITY SENSOR
Measuring range
0 to 100 % RV
Accuracy
±1.8 %RV in the range of 0 to 90 % RH at 23 °C
Response time
t90 < 9 s (humidity step 60 %RH, constant temperature)
Hysteresis
±1 % RV
Linearity
±1 % RV
DEW POINT
Measuring range
-60 to +80 °C
Accuracy
see the manual
GENERAL TECHNICAL DATA
Operating temperature
-20 to +80 °C
Protection class
IP40
Connector
ELKA

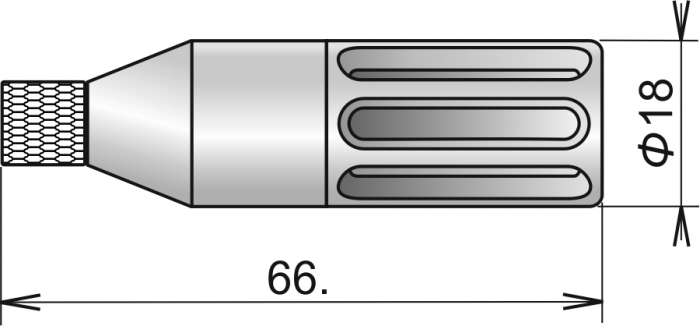

Dimensions
66 x 18 mm
Weight
cca 10 g
Warranty
3 years
Optional accessories and download
Extension cable for DIGIS and DIGIL probes, ELKA connector, cable 1 meter
code
SDP001-1
Price
$64
In stock
on request
Extension cable for DIGIS and DIGIL probes with ELKA connector - 10 meters
code
SDP001-10
Price
$96
In stock
on request
Extension cable for DIGIS and DIGIL probes with ELKA connector - 15 meters
code
SDP001-15
Price
$112
In stock
on request
Extension cable for DIGIS and DIGIL probes with ELKA connector - 2 meters
code
SDP001-2
Price
$68
In stock
on request
Extension cable for DIGIS and DIGIL probes with ELKA connector - 5 meters
code
SDP001-5
Price
$82
In stock
1 pcs
sintered bronze sensor cover
code
F0000
Price
$38
In stock
on request
plastic sensor protection with stainless filter (gray)
code
F5200
Price
$24
In stock
on request
PTFE sensor protection, white
code
F5300
Price
$76
In stock
on request
Manuals
Instruction Manual
Declaration of Conformity
Confirmation of the functioning principles of digital probes made by COMET
