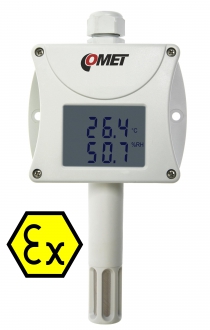

Intrinsically safe humidity and temperature transmitter with 4-20mA output

ATEX certified relative humidity temperature transmitter. Outdoor, indoor use.

Built-in relative humidity, temperature sensors. Measured values are also converted to other humidity interpretation: dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy.

ATEX certification for use in potentially explosive environments.





  • code
    T3110Ex
  • Warranty
    3 years
  • $630

Technical data

Measured value

Temperature
Relative humidity
Counted values (dew point…)

TEMPERATURE SENSOR

Measuring range -30 to +80 °C
Accuracy ±0.4 °C
Resolution 0.1 °C

HUMIDITY SENSOR

Measuring range 0 to 100 % RH
Accuracy ±2.5 % RH from 5 to 95 % at 23 °C
Resolution 0.1% RH

DEW POINT

Measuring range -60 to +80 °C
Accuracy ±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution 0.1 °C

ATEX CERTIFICATION

Certificate FTZÚ 13 ATEX 0189X
Marking EX ll 3G Ex ic llC T6 Gc

GENERAL TECHNICAL DATA

Operating temperature -30 to +60 °C
Channels internal temperature and humidity sensor
Counted values dew point, absolute humidity, specific humidity, mixing ratio, specific enthalpy
Output 4-20 mA, galvanic isolated
Range of humidity sensor temperature compensation all temperature range
Configuration of output user adjustable from PC; measured range + value
Power 9-30 Vdc
Protection class IP65 electronics; IP40 sensors
Dimensions 88,5 x 170 x 39,5 mm; stem length 75 mm
Weight approx. 150 g
Warranty 3 years

Features

Applications:

Aplikace - Sklady

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -200 ° C to + 600 ° C.

Aplikace - Serverovny a datová centra

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Aplikace - Zdravotnictví a laboratoře

Healtcare and laboratories - Monitoring of sterile environments and storage areas at temperatures up to -200 °C. COMET sensors can serve well even in these demanding and wide range of applications focusing on monitoring temperature, CO2 and other critical parameters in the context of GLP and GMP regulations.

Aplikace - Průmysl

Industry and manufacturing - such as the chemical, oil, paper and steel industries - is distinguished by its capital demands. A competition across the market is still growing and creates additional pressure on the prices. Our company has a good understanding of this situation and thus provides very reliable and precise products for a very competitive price.

Aplikace - Sklady

Food industry - wherever there is a need to monitor critical variables in relation to HACCP regulations, COMET sensors and transducers may be used. Along with other COMET products such monitoring systems MS6 and MS55D, it is possible to create a comprehensive system for collecting, recording, analyzing and alerting.

Aplikace - Sklady

Building management - Our instruments which measure temperature, humidity, atmospheric pressure and CO2 are an integral part of these industry-leading solutions.

Aplikace - Sklady

Potentially explosive environments - Selected devices comply with the requirements of the ATEX directive for use in potentially explosive environments (zone 2).

Features description:

* the features may vary depending on the device type
● accurate measurement of Temperature, Relative humidity, Dew point, Atmospheric pressure, CO2, Two-state events
● industrial or interior design with protection up to IP65
● integrated sensors, external probe, duct mount design
● ATEX design for potentially explosive atmospheres (zone 2) on selected models
● relays output 250Vac / 8A or 50 V on selected models

3 years warranty Traceable calibration certificate
Temperature Relative humidity CO2 Barometric pressure Dew point LCD 4-20mA output 0-10V output ATEX


Optional accessories and download

Accredited temperature and relative humidity calibration

Accredited temperature and relative humidity calibration

code SLU003
Price $112
In stock on request

Zener Barrier  ZbC2+

Zener Barrier ZbC2+

code ZbC2+
Price $396
In stock 49 pcs

cable for transmitter adjustment via USB port

cable for transmitter adjustment via USB port

code SP003
Price $64
In stock 65 pcs

sintered bronze sensor cover

sintered bronze sensor cover

code F0000
Price $38
In stock on request
plastic sensor protection with stainless filter (gray)

plastic sensor protection with stainless filter (gray)

code F5200
Price $24
In stock on request
PTFE sensor protection, white

PTFE sensor protection, white

code F5300
Price $76
In stock on request

Humidity Standard 10%RH, set 5pcs

Humidity Standard 10%RH, set 5pcs

code HM023
Price $142
In stock 16 pcs
Humidity Standard 80%RH, set 5pcs

Humidity Standard 80%RH, set 5pcs

code HM024
Price $142
In stock 14 pcs
Vessel for adjustment and calibration of humidity

Vessel for adjustment and calibration of humidity

code MD046
Price $90
In stock 10 pcs
Tool for easy connection to WAGO terminals 236 for analog output transmitters

Tool for easy connection to WAGO terminals 236 for analog output transmitters

code SP005
Price $6
In stock 41 pcs

Software

download-icon Conversions - application for recalculation of values
694.50 KB

Others

download-icon 3D model T3110Ex
1.53 MB
download-icon Terms and Conditions COMET System s.r.o.
133.12 KB

Manuals

download-icon Instruction Manual
978.78 KB
download-icon Quick Start Manual
686.01 KB
download-icon Declaration of Conformity
63.58 KB
download-icon Manual on the issue COMET sensors in potentially explosive atmospheres
869.21 KB
download-icon ATEX Certificate for sensors with 4-20mA output for use in potentially explosive environments
3.26 MB
download-icon ATEX Certificate for sensors with 4-20mA output for use in potentially explosive environments - Supplementary No. 2
180.55 KB

Catalogs

download-icon CATALOG - Analog Sensors with 0-10 V or 4-20 mA output
1.86 MB
download-icon Catalogue Sheets - COMET ATEX Sensors & Zener Barrier
911.24 KB
