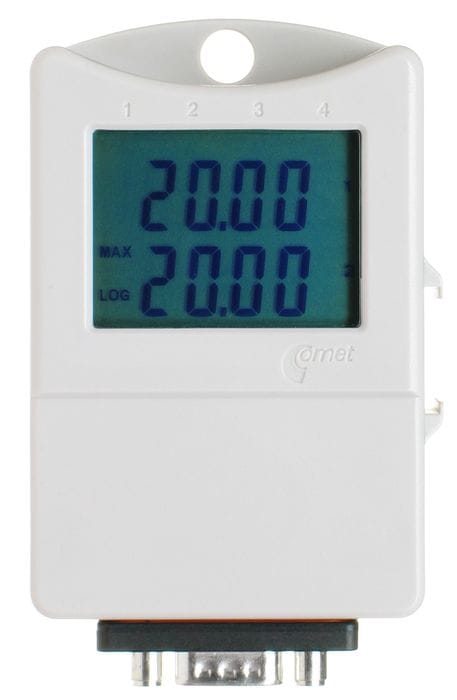

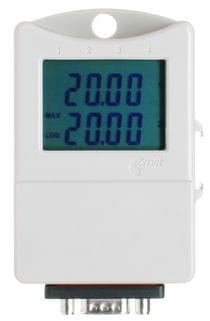

Dual channel 0-5V voltage datalogger with display

Data logger is designed for record of voltage. Values are stored to a non volatile electronic memory. Data transfer to the personal computer for further analysis is performed via USB, RS232, GSM or Ethernet interface by means of a proper adapter.

The device includes Traceable calibration certificate with declared metrological traceability of etalons is based on requirements of EN ISO/IEC 17025 standard.

For communication with the PC must be from Optional accessories ordered USB adapter or COM adapter or start/stop magnet if is needed to control logging the other way than directly from computer.

Included in delivery:

S5021
Lithium battery 3,6V
Manual
Traceable calibration certificate
Technical support at discussion forum
FREE analytical software COMET Vision

code

S5021
Warranty

3 years

On request

Buy

Add to quote

Technical data

Measured value

Voltage

VOLTAGE INPUT

Voltage measuring range 0 to 5 V ss

Resolution 13 bit

Accuracy ±0.2 % FS

Input resistance approx. 100 kOhm

Signal for binary input from potential - less contact or two - state voltage signal

Minimum pulse duration on binary input 500 ms (shorter pulses will not be recorded)

Maximum frequency on binary input 0,5 Hz (i.e maximum of 5 pulses for 10 s)

Power current of connected contact 3 µA (contact closed)

Voltage across open contact max 3.6 V

LOW voltage level on binary input 0 to +0.2 V, current from input max. 3 µA

HIGH voltage level on binary input +3 to +30 V, current to input max. 100 nA

Connector for connection of input signals CYESN 9 pins

GENERAL TECHNICAL DATA

Operating temperature -30 to +70 °C

Channels 2x input 0-5 V

Memory 32,000 values (non-cyclic record)

Recording interval adjustable from 10 s to 24 h

Display and alarm refresh each 10 s

Recording mode noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new

Real time clock year, leap year, month, day, hour, minute, second

Power lithium battery 3.6 V; size AA

Battery life 5 years

Protection class IP20

Dimensions (without connectors) 93 x 64 x 29 mm

Weight (including batteries) approx. 115 g

Warranty 3 years

Features

Applications:

Healtcare and laboratories - Monitoring of storage areas at temperatures up to -90 ° C.

Food industry - Monitoring of critical processes according to the HACCP standard with the possibility of prompt notification of unforeseen events that could lead to the degradation of the goods.

Industry and production - monitoring temperature and humidity in food, pharmaceutical, aerospace etc.

Production facilities and warehouses - Monitoring of storage conditions and production processes in the temperature range -90 ° C to + 260 ° C.

Metrology - COMET sensors together with COMET radiationshields are the ideal basis for weather stations for long-term weather, climate and air monitoring.

Features description:

* the features may vary depending on the device type

● accurate measurement of Temperature, Humidity, Dew point, Current (4 – 20 mA), Voltage (0 – 5 V, 0 – 10 V), Pulses, Events
● nonvolatile memory for 32 000 values
● indication of alarm conditions via email, SMS or visually
● software for data analysis on PC
● communication interfaces - USB, RS232, GSM modem, Ethernet
● rugged design with protection up to IP67
● battery life up to 7 years
