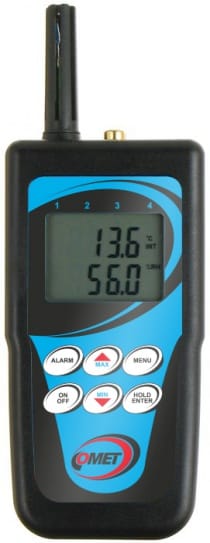

Thermo-hygrometer
Thermometer, hygrometer is designed for measurement and datalogging of temperature, relative humidity into the internal non-volatile memory.
Free PC program enables to transfer recorded data to the computer for evaluation. LCD backlight.
Data logger is connected to the PC through included USB cable only for data trasfer from the memory. During connection with the PC no measurement and record is enabled.
Temperature and air relative humidity reading, dew point temperature reading selectable, built-in sensors. A Cinch connector for connection of an external RTD Ni1000/6180ppm temperature probe.
Surface, pointed-tip, insertion and other probes with Cinch connector are available. Indication of temperature difference of external probe and dew point. Audio and visual alarm for the temperature difference e.g. for monitoring of condensation or mould creation.
-
codeD3631
-
Warranty3 years
- $568
Technical data
Measured value
Temperature
Relative humidity
TEMPERATURE SENSOR
Measuring range
-10 to +60 °C
Accuracy
±0.4 °C
Resolution
0.1 °C
TEMPERATURE SENSOR - external probe Ni1000
Measuring range
-50 to +250 °C
Accuracy
±0.2°C from -50 to +100°C
±0.2% from reading from +100 to +250°C
±0.2% from reading from +100 to +250°C
Resolution
0.1 °C
HUMIDITY SENSOR
Measuring range
5 to 95 % RH
Accuracy
±2.5 % RH from 5 to 95 % at 23 °C
Resolution
0.1% RH
DEW POINT
Measuring range
-40 to +60 °C
Accuracy
±1.5 °C at ambient temperature T <25 °C and RH >30 %
Resolution
0.1 °C
GENERAL TECHNICAL DATA
Operating temperature
-10 to +60 °C
Channels
internal temperature and humidity sensor, 1x external temperature probe
Acoustic signalization + backlit LCD
YES
Memory
16,000 values (non-cyclic record)
Recording interval
adjustable from 10 s to 24 h
Measuring interval and display reading refresh
0.7 to 5 s
Recording mode
noncyclic - data logging stops after filling the memory
cyclic - after filling memory oldest data is overwritten by new
cyclic - after filling memory oldest data is overwritten by new
Real time clock
year, leap year, month, day, hour, minute, second
Power
battery 9 V or 12 Vss adaptor with NiMH 9 V battery
Battery life
approx. 6 months
Protection class
IP20
Dimensions (without connectors)
191 x 71 x 27 mm
Weight (including batteries)
approx. 155 g
Warranty
3 years
Optional accessories and download
N1ATG8/C, temperature probe with Ni1000 sensor, cable 1 m
code
SN001C
Price
$72
In stock
on request
N1ATG8/C, temperature probe with Ni1000 sensor, cable 2 m
code
SN002C
Price
$72
In stock
on request
N1ATG8/C, temperature probe with Ni1000 sensor, cable 5 m
code
SN005C
Price
$88
In stock
on request
N1ATG8/C, temperature probe with Ni1000 sensor, cable 15 m
code
SN015C
Price
$162
In stock
on request
N1ATG7/C, temperature probe with Ni1000 sensor, cable 1 m
code
SN016C
Price
$96
In stock
on request
N1ATG7/C, temperature probe with Ni1000 sensor, cable 2 m
code
SN017C
Price
$96
In stock
on request
N1ATG7/C, temperature probe with Ni1000 sensor, cable 5 m
code
SN020C
Price
$114
In stock
on request
N1ATG7/C, temperature probe with Ni1000 sensor, cable 15 m
code
SN030C
Price
$158
In stock
on request
0061-200/C, temperature probe with Ni1000 sensor, cable 1 m
code
SN031C
Price
$206
In stock
1 pcs
0061-200/C, temperature probe with Ni1000 sensor, cable 2 m
code
SN032C
Price
$210
In stock
on request
304-220/C, temperature probe with Ni1000 sensor, cable 1 m
code
SN061C
Price
$110
In stock
on request
034-150/C, temperature probe with Ni1000 sensor, cable 1 m
code
SN076C
Price
$158
In stock
on request
ac/dc adapter 120Vac to 12Vdc/1A, EU
code
A1515eu
Price
$24
In stock
152 pcs
ac/dc adapter 120Vac to 12Vdc/1A, UK
code
A1515uk
Price
$24
In stock
5 pcs
ac/dc adapter 120Vac to 12Vdc/1A, US
code
A1515us
Price
$24
In stock
3 pcs
NiMH rechargeable batt. 9V/200mAh
code
A3400
Price
$28
In stock
on request
Accredited temperature and relative humidity calibration
code
SLU003
Price
$112
In stock
on request
Transducer USB/RS232 complete
code
MP006
Price
$70
In stock
8 pcs
Mini USB cable, 2 meters
code
MP038
Price
On request
In stock
on request
Communication cable for COMMETER Dxxxx
code
QLOG015
Price
$18
In stock
11 pcs
Mini USB cable, 2 meters
code
MP038
Price
On request
In stock
on request
code
PPO001
Software
Comet Vision Software (2.3.8935.24346 dbapi 21.1)
Conversions - application for recalculation of values
Others
Terms and Conditions COMET System s.r.o.
Manuals
Instruction Manual
Quick Start Manual
Declaration of Conformity
Catalogs
CATALOG - Portable measuring instruments COMMETER
Catalogue Sheets - COMETTER
