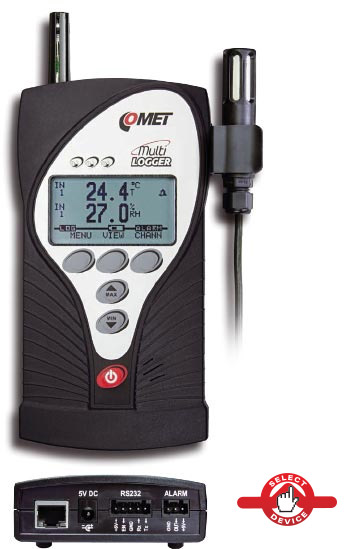

Battery operated 16 input-channel datalogger with Ethernet interface
Multilogger
- use DATALINK: display current values or download values from
device memory to your PC - view current measured values using your web browser
- third-party applications to read the actual measured values using
universal protocols SNMPv1 and XML - send data to COMET DATABASE software which contains many useful tools for data analysis - graphs, tables, statistics, etc.
Main features
- up to 6 hardware inputs for measuring and recording, 16 virtual channels
- - temperature
- - humidity
- - dew point
- - atmospheric pressure
- - current 0 - 20 mA and voltage 0 - 10 V (-60 to 140 mV)
- - two-state events
- - pulses
- - CO2
- memory for 1 million values
- indication of alarm conditions via
- - SMS
- - integrated acoustic siren LEDs
- - stwo-state output to control other devices
- analytical software for data processing and configuration - Comet Vision
- communication interfaces - USB, RS232 and Ethernet (SNMPv1 and XML)
3 types of input
All models have 4 input connectors for external probes or signals. These may be supplemented by an internal atmospheric pressure transducer and / or CO 2 sensor.
Temperature probes Pt1000 (serie xxx/M)
Temperature/relative humidity probes with digital output (serie DIGI)
Sensors with bipolar output voltage and a range of- 60 to + 140 mV (heat flux sensors, etc.)
Devices with two-state output (monitoring of machine run, door open/ close, etc.)
Device with pulse output (gas and water meters, counter pieces on a production line, etc.)
Evaluation of up to 16 variables
Up to 16 variables may be calculated from the four connected probes / sensors. (This is the sum of the measured and calculated values). The calculated values can be:
- a further expression of moisture (dew point temperature, absolute humidity, specific humidity, mixing ratio, specific enthalpy)
- the result of inter-channel conversions
(eg. the difference of two connected temperature probes)
Alarm limits
It is possible to set two independent alarm limits for each channel (ie. measured or calculated value) which can be configured either as an upper and lower limit or two limits exceeding in a consistent direction. Alarm signalization can be acoustic (built-in beeper), optical (3 LEDs), alarm output or sending an e-mail alert.
Power supply
Power is provided from an external AC adapter, and operation of the device (except Ethernet interface) is backed up by replaceable batteries. The device can be used permanently installed or as portable device with the option to charge batteries directly using the AC adapter or using standard alkaline batteries size AA. Battery life is several months.

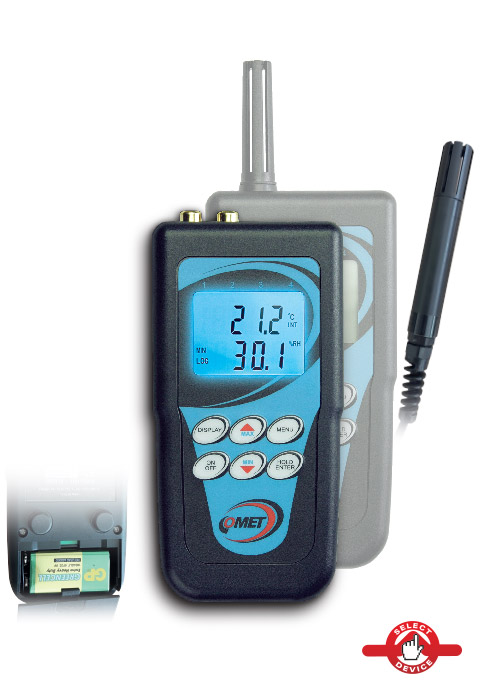

Handheld for measuring and recording
Commeter
Main features
- measuring and recording
- - temperature (probes Pt1000, Ni1000)
- - humidity
- - dew point
- - atmospheric pressure
- accurate measurement of up to two probes
- version of the device with memory and without memory
- audible and visual indication alarm conditions
- analytical software for data processing and configuration
- the possibility of setting through a keypad
- USB communication interface
- backlit display
Measurment
COMMETER portable devices measure physical quantities such as temperature, dew point, humidity, atmospheric pressure or pressure tendency over the past three hours. The measured value is displayed on dual line LCD display. MIN / MAX value or a manually stored measured value can be read on the display.
Alarm indication
For each measurement channel can be set upper and lower limits. In case the limits are exceeded these limits alarm is indicated as the value blinking on the display. If the alarm is activated, the device can draw attention to this fact also by intermittent acoustic signal which can be turned off.
Record
Measured values can be stored in memory. Measured values are stored either automatically or manually. Automatic record stores the values at pre-intervals from 10s to 24h. Logging mode can be adjusted as non-cyclic, when logging stops after filling the memory or cyclic, when the oldest recorded values are overwritten by new ones after the memory is full. You can store up to 16 000 values. Manual mode allows you to save the current values by pressing HOLD / ENTER. Stored values can be transferred via the USB port to PC.
Data analysis
The recorded data can be transferred to a PC for further analysis. Obtained values can be displayed in the form of a table or graph, data can be printed or exported to dbf or txt format for further processing of spreadsheet software.
